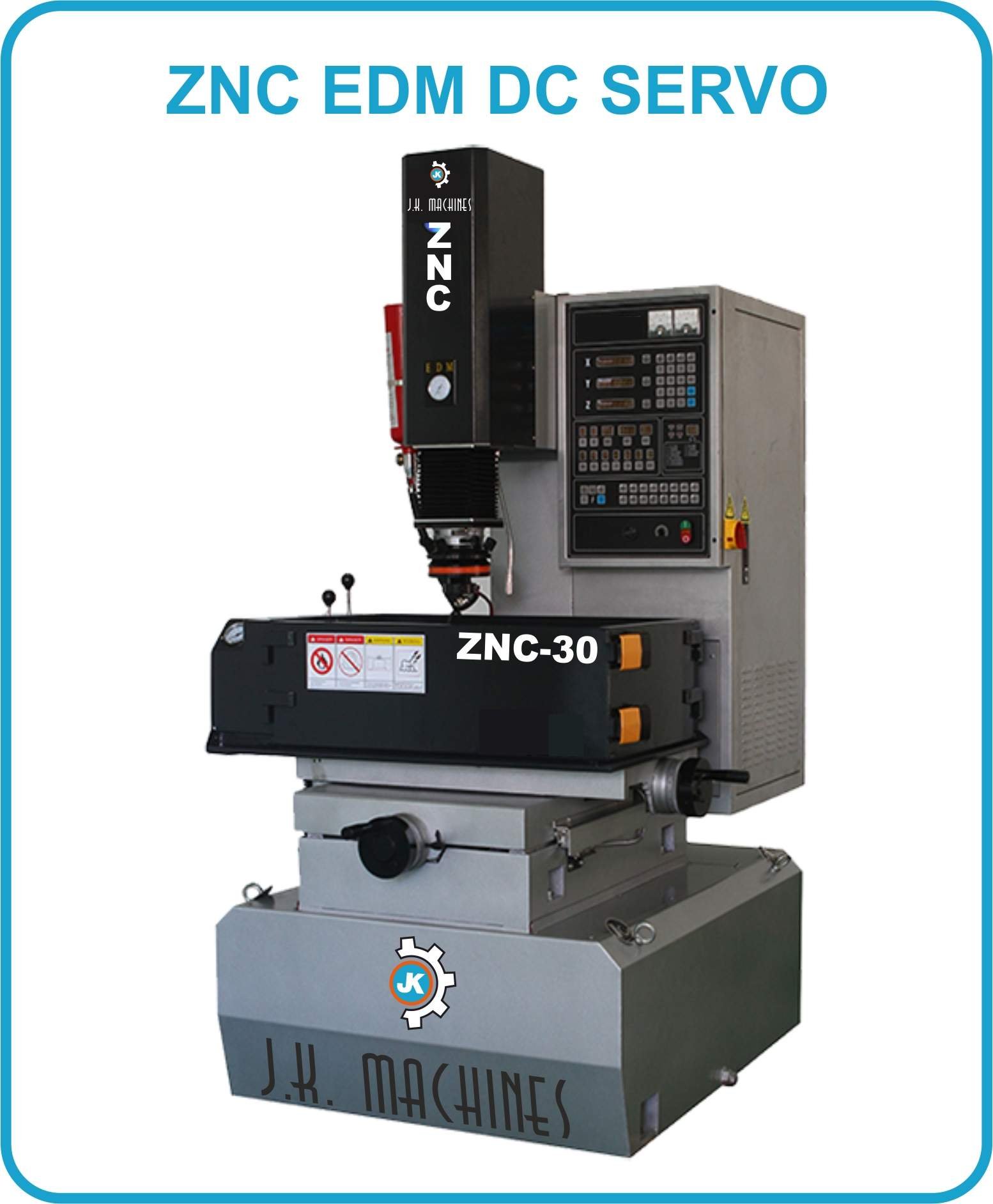

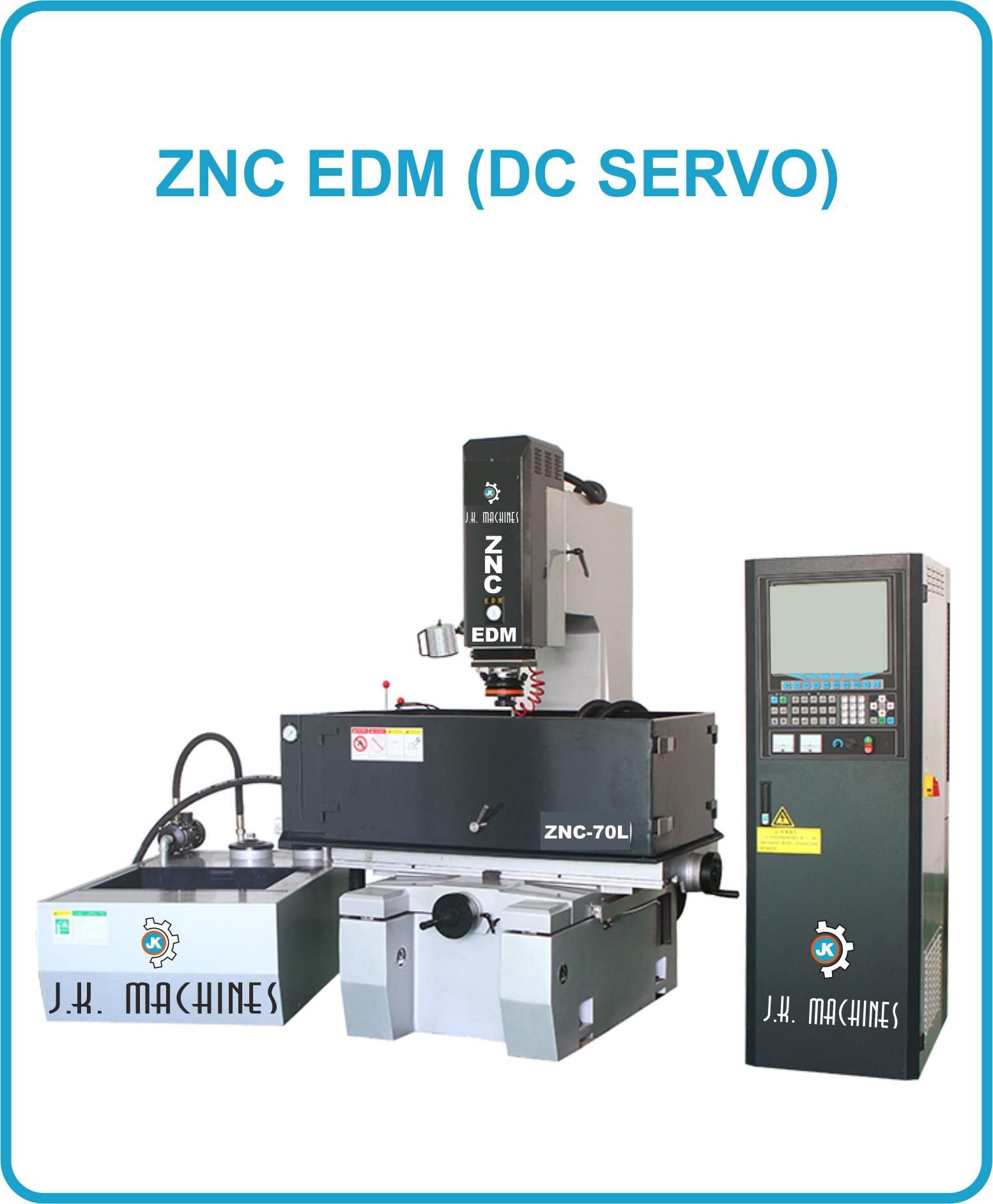

ZNC EDM (DC SERVO)
Salient Features
- Seven Segment Display
- Programmable Z axis
- 10 Step, 10 Programs storage
- Built in 3 axis DRO with 5 micron resolution
- Integral design and compact footprint
- Precision co-ordinate table on flat & V type turcide coated guide ways driven by ball screw
- Double door large work tank for ease of loading & unloading of work piece
- Oil level alarm, Oil temperature alarm
- Highly accurate work head with the quill running on pre-loaded cross roller bearing
- High speed quill movement with DC servo motor
- Motorized back slide travel (ZNC-35 onwards)
- Hand held full function remote control (80A, 100A & 40AL)
- X,Y,Z lock function
- mm & inch function
- Reverse servo machining
- Safe & stable no arc machining
- Like to like material machining
- Calibrated EDM technology
- Fire extinguisher, Smoke detector alarm
- Sleep mode, Auto mode
- Power efficient high pressure dielectric pump
- Oil filtration with 20 micron paper filter
Job Sample
Application Accessories
- Servo stabilizer
- Edm oil
- Orbital attachment
- Translatory head
- Magnetic chuck
- LCD color display
Standard Accessories
- Axis corrector with fine adjustment
- Flat electrode holder
- Round electrode holding chuck
- Machine lamp
- Flushing aids
- Clamping kit
- Leveling pad
- Tool kit
