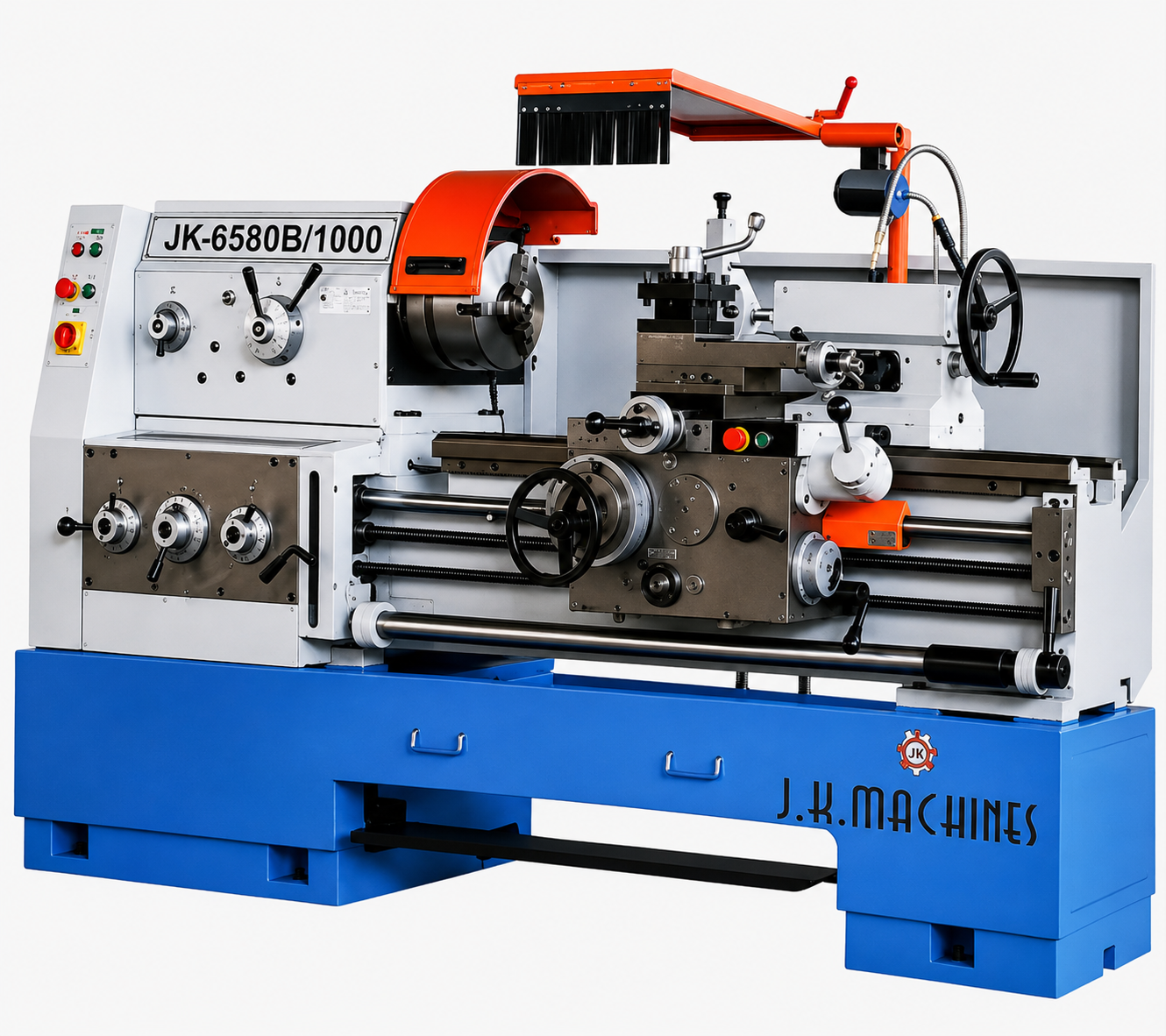

All Geared Lathe Machine
Salient Features
- IS.20/25 graded casting
- Rigid and box section type 250 mm wide bed provides maximum torsional stiffness.
- Rigid and accurate, alloy steel hardened and ground main spindle mounted on precision taper roller bearings & ball bearings.
- Forced lubrication in universal feed gear box Apron with oil bath.
- Thread and feed mechanism interlocked (Only one can be engaged a time).
- Camlock spindle nose (D1-4 type)
- Overload Protection through suitable relays and contactors.
- Switch shaft lever fix at carriage to Reverse/forward & stopped main spindle.
Standard Accessories
- Three Jaw Chuck
- Four Jaw Chuck
- Face Plates
- Steady Rest
- Follow Rest
- Foot Brake
- Coolant System
- Machine Lamp
- Centre and Sleeve
- Splash Guard
- Induction Hardened Bed
- Oil Gun
- Thread Chasing Dial
- Operational Manual, Wrenches
Technical specifications
| Technical Specification | Unit | JK-6250B/1000 | JK-6250B/1500 |
|---|---|---|---|
| Center Height | mm | 210 | 210 |
| Distance Between Centres | mm | 1000 | 1500 |
| Swing Over Bed | mm | 420 | 420 |
| Swing Over Cross Slide | mm | 250 | 250 |
| Turning in The Bed Gap | mm | 590 | 590 |
| Length of Bed Gap | mm | 260 | 260 |
| Width of Bed | mm | 250 | 250 |
| Spindle Speed | RPM | 45-1800 | 45-1800 |
| Number of Steps | - | 16 Stage | 16 Stage |
| Spindle Taper | - | MT 6 | MT 6 |
| Spindle Seat | - | Camlock ASA D 1-6" | Camlock ASA D 1-6" |
| Spindle bore | mm | 52 | 52 |
| Travel Top Slide | mm | 140 | 140 |
| Travel Cross Slide | mm | 230 | 230 |
| Total Connected Load | Kw | 2.2 | 2.2 |
| Machine Weight | Kg | 1050 | 1350 |
