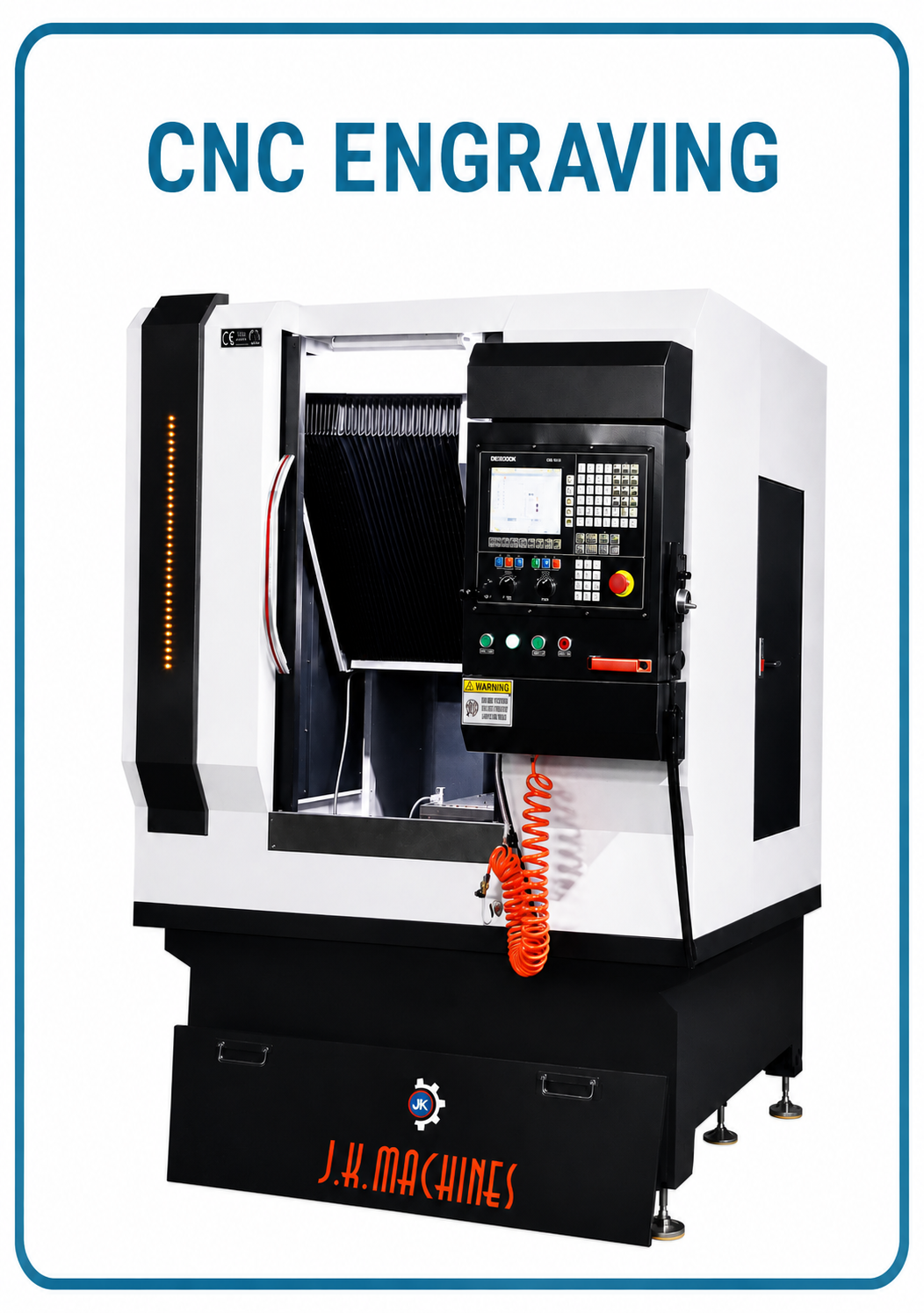

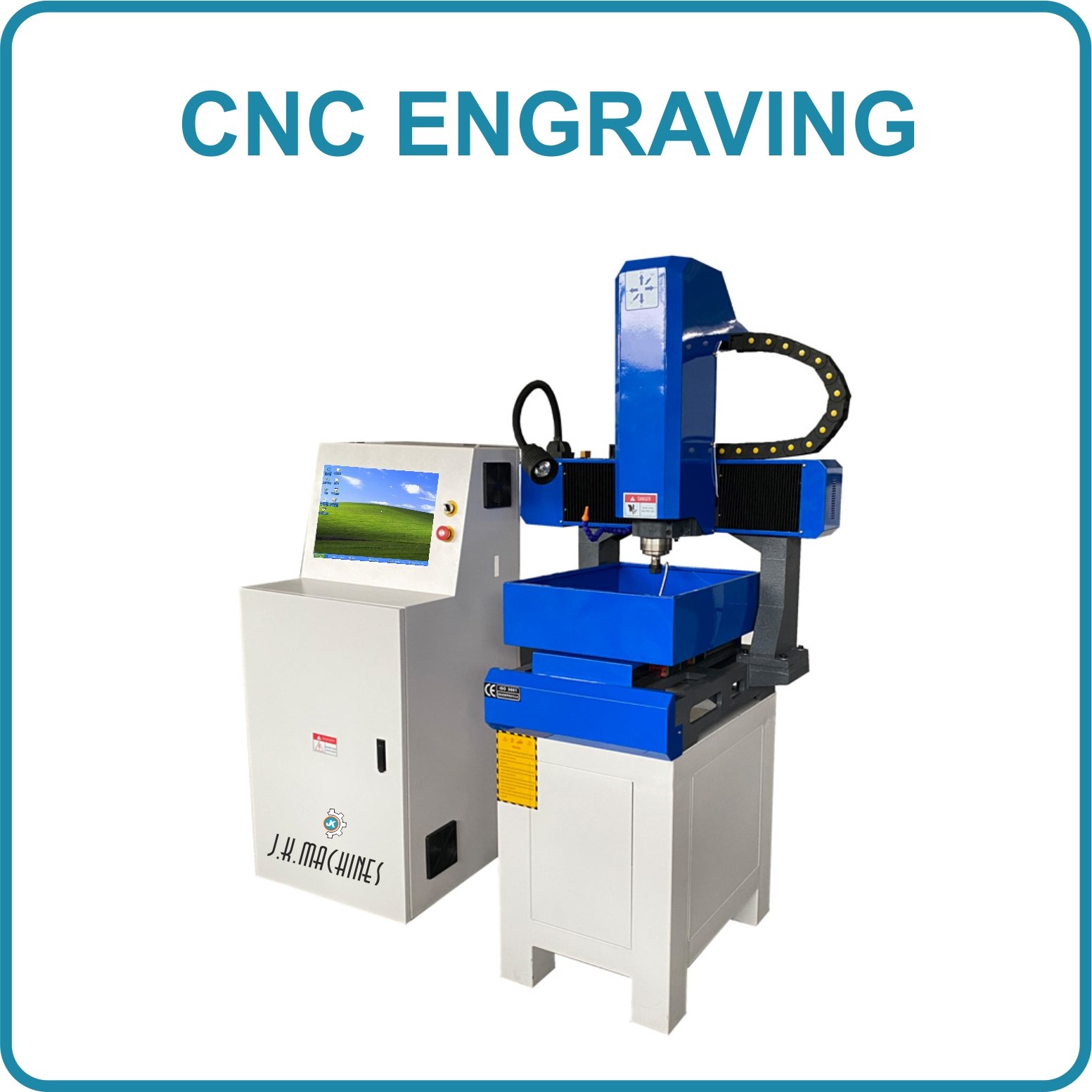

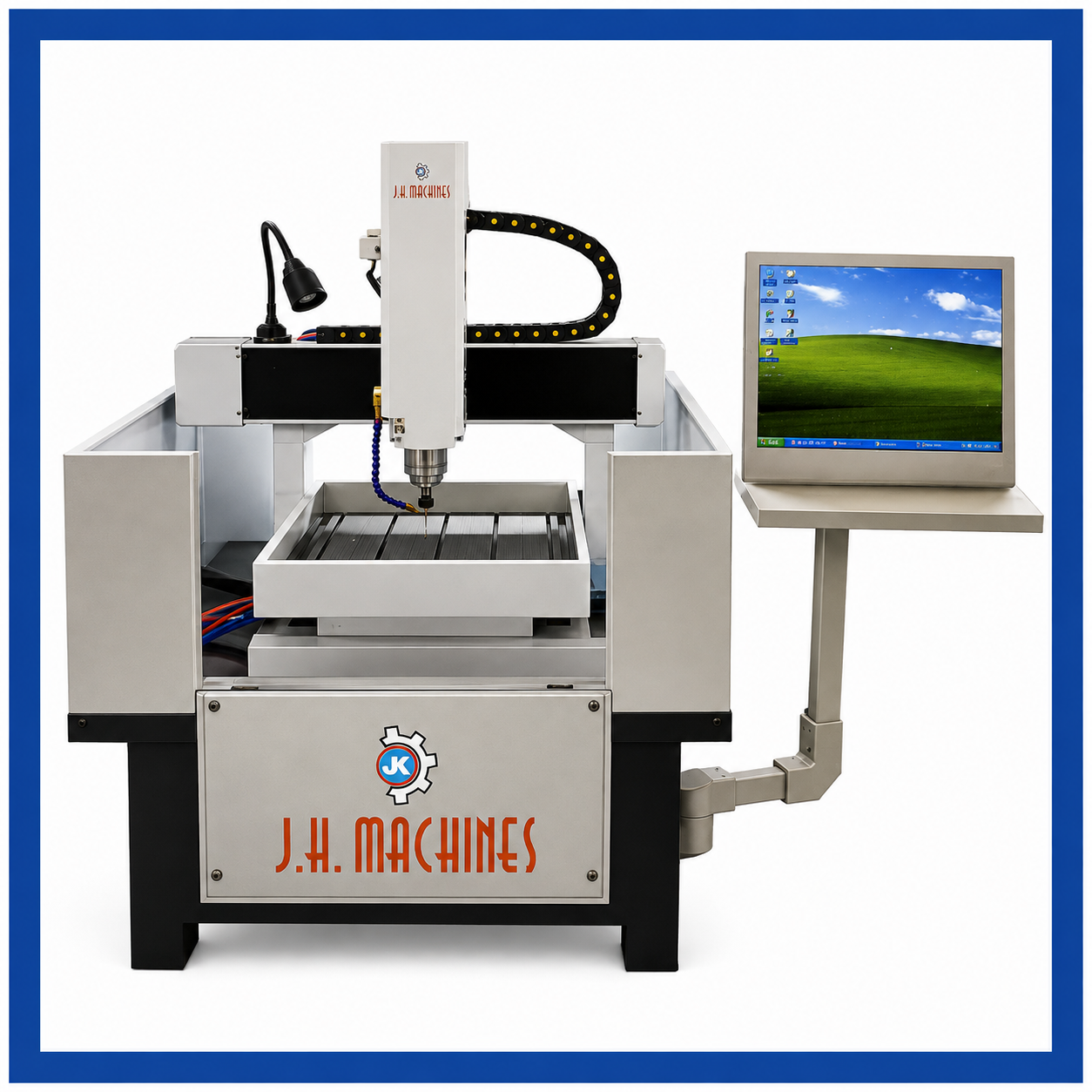

CNC Engraving Machines
Salient Features
- High precision ball screw / L.M. guide ways (Hiwin)
- Leadshine/Panasonic/Delta/Yaskawa Stepper/Servp motor & drives
- Advance PC based controller
- Automatic lubrication system
- Works with G code like .tap, .nc, .opt, .plt
- Suitable for engraving on Steel, Brass, Copper & Aluminum
- Double fixed column, Table movement for stable working
- Cast iron robust structure

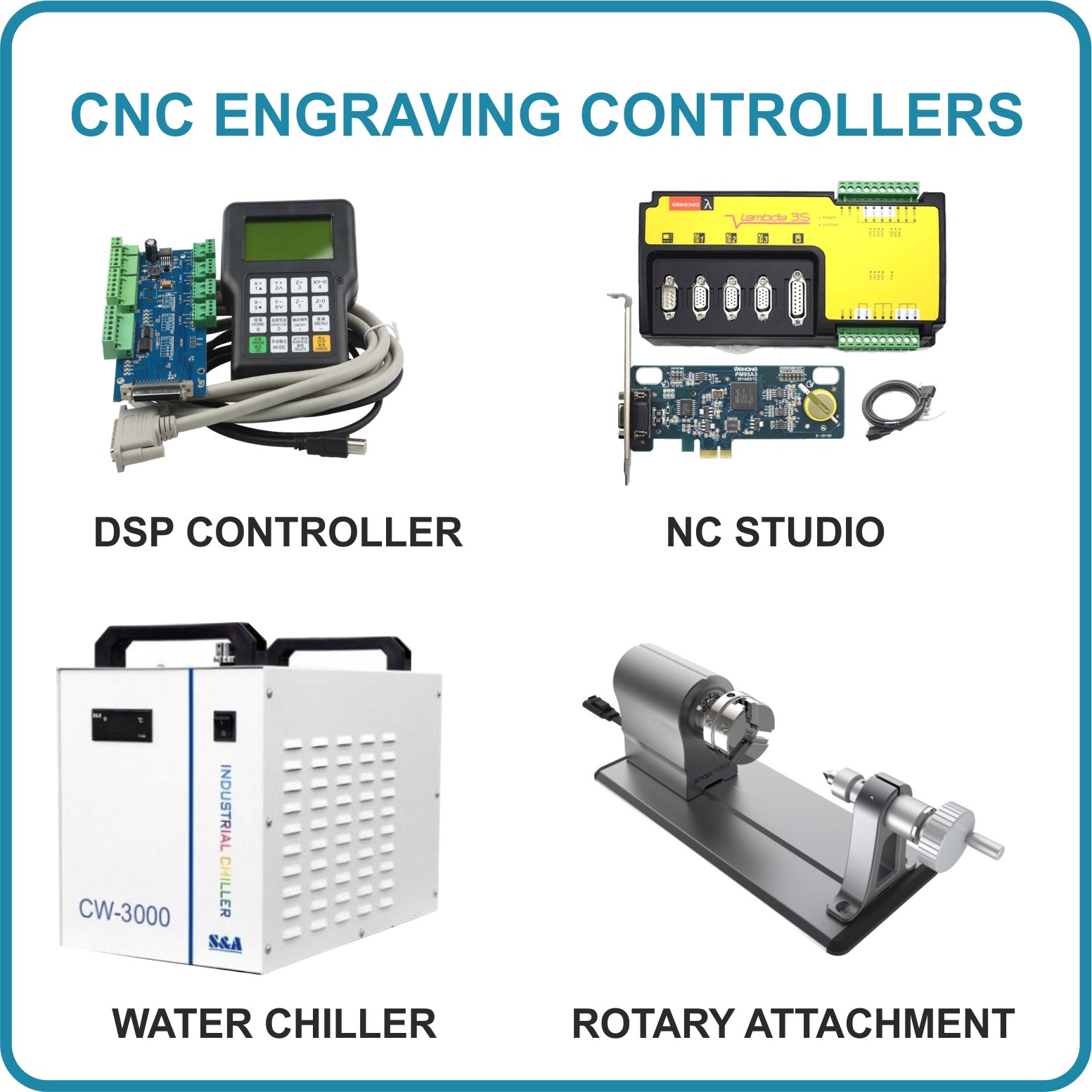

Application Accessories
- 4th Axis Rotary Attachment
- Auto Tool Changer
- Water Chiller
- Vacuum Table
- MPG hand remote
Standard Accessories
- Tool length calibrator
- Automatic lubrication system
- Machine lamp
- Coolant system
- Clamping kit
- Levelling pad
- Spanners
Technical specifications

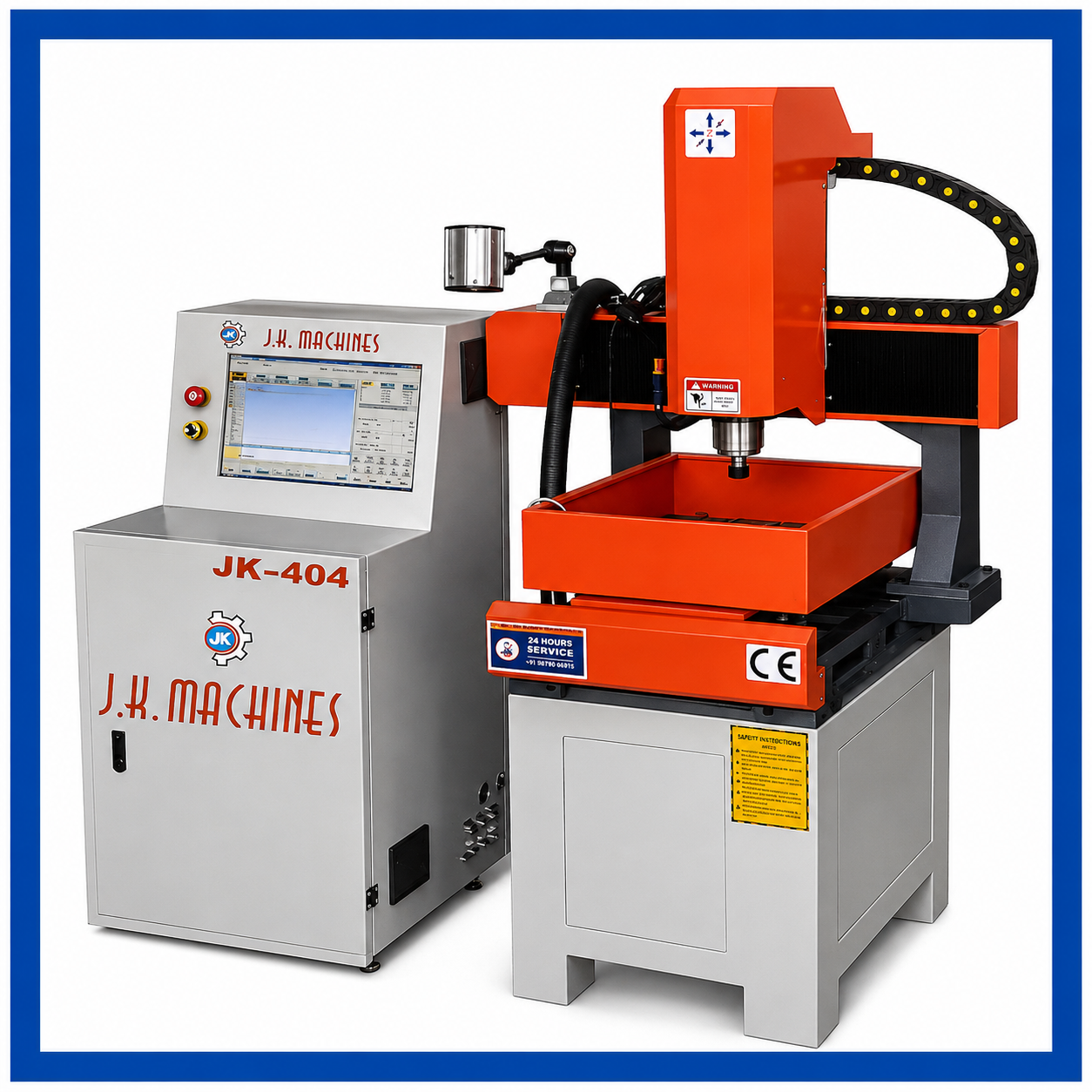

| Parameter / Specification | Unit | JK-404 | JK-606 | JK-609 |
|---|---|---|---|---|
| Working Table (X x Y) | mm | 440 x 440 | 620 x 620 | 620 x 920 |
| Working Travel (X x Y) | mm | 400 x 400 | 600 x 600 | 600 x 900 |
| Travel (Z axis) | mm | 200 | 200 | 200 |
| Feeding Height (Z axis) | mm | 200 | 200 | 300 |
| Position accuracy | mm | 0.01 / 300 | ||
| Repeatability | mm | 0.008 | ||
| Spindle speed | rpm | 6000 - 24000 | ||
| Spindle power | kw | 2.2 kw (Water cooling) 3.2 kw, 4.5 kw & 5 kw (Optional) | ||

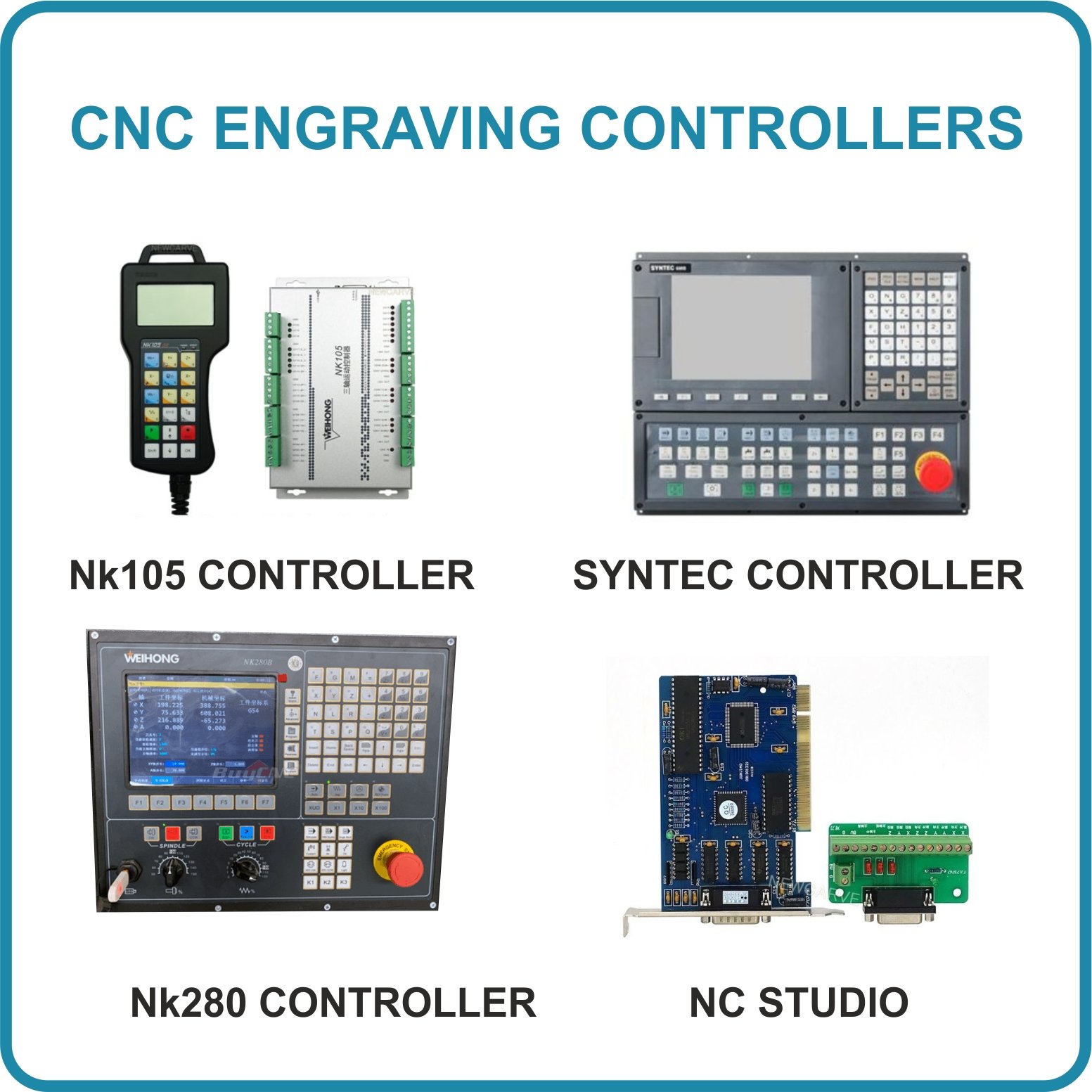

| Control system | - | NC Studio / DSP / NK105 / NK280 / SYNTEC 6MA | ||
| Drive system | - | Steeper / Servo | ||
| Max. rapid travel speed | m/min | 6 | ||
| Max. working speed | m/min | 3 | ||
| Input power supply | V | Single phase, 220VAC (3Phase 415VAC, 50Hz Optional) | ||
| Gross weight | kg | 500 | 800 | 1000 |
| Over all dimension | mm | 850 x 800 x 800 | 950 x 850 x 850 | 1000 x 1300 x 1000 |
