CNC Wirecut (AC Servo)

Salient Features

• “C” structure, “I” shape machine bed same as brass WEDM structure
• Reusable reciprocating technology
• Linear Guide & Ball Screw for X, Y, U, V, Z Axis & Wire Drum
• Special industrial computer with LCD color display
• Panasonic/Mitsubishi AC servo motors with close loop feedback on X,Y Axis
• Die electric tank with paper filter
• Multi cut, Multi cavity
• AutoCut 10.1 controller system based on Window 10
• Automatic centerlised lubrication system
• MPG remote for axis movement and machine run
• Automatic wire tension system
• Motorized Z axis on L. M. guide
• LED working lamp
• Program input from USB, LAN online
• Incremental, Absolute command
• Linear & Circular interpolation
• Steps error, backlash error compensation
• Display of machining time & cutting rate
• 2D/3D graphic simulation of wire path
• Display of operator help & error massage
• Simultaneous control of X,Y,U,V axis
• Single block execution
• Rotation/mirror of program
• Automatic center find, Edge find
• Wire brake protection mode
• Auto gap short recovery
• Alarm light
• Resumption of cutting from power fail position

Application Accessories

• Bigger Taper
• Higher Z Height
• Magnetic Filter
• U & V Servo

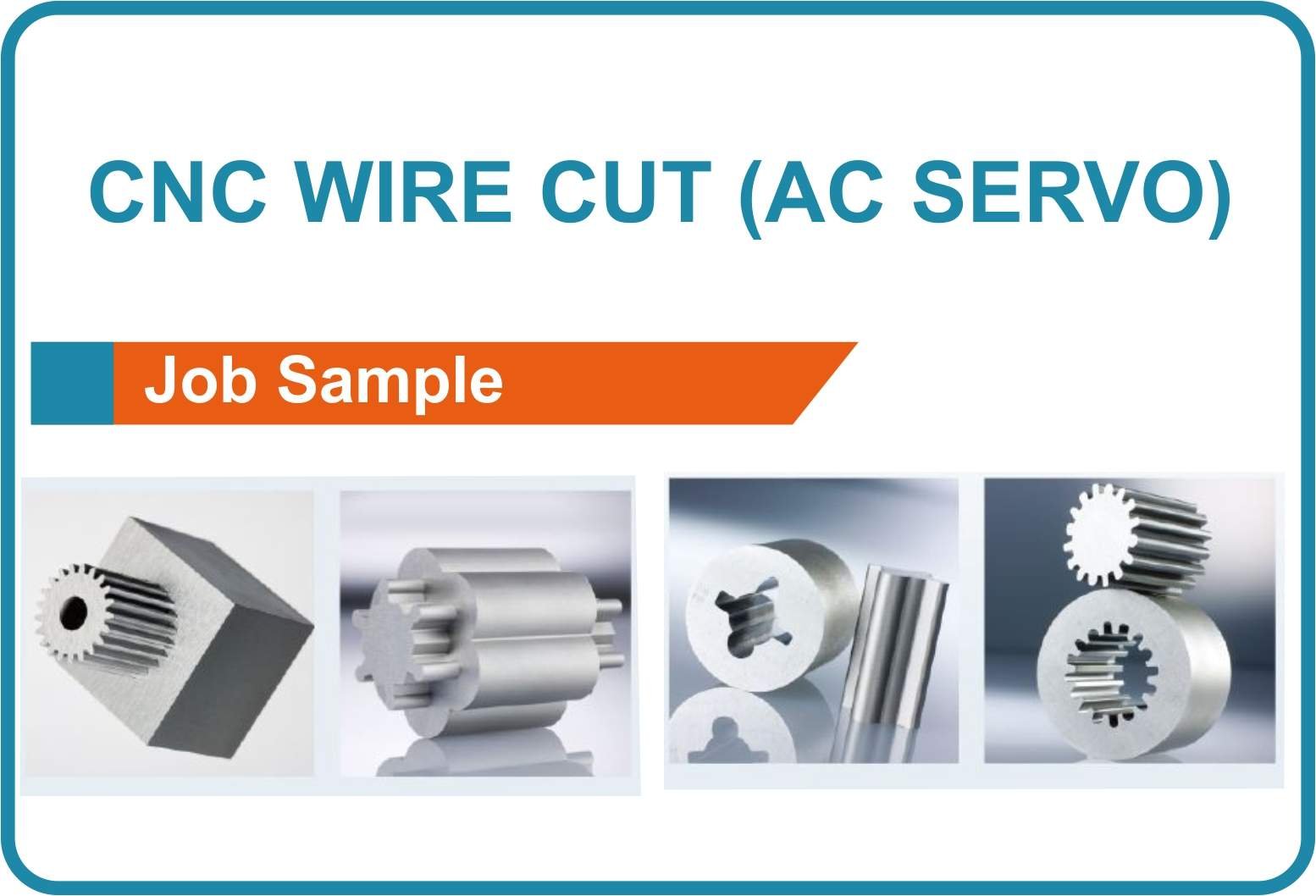

Job Sample

Standard Accessories

• Wire Right Angle Block
• Drum Handle
• Molybdenum Wire
• DIC 206 Fluid
• Tool Kit
• Allen Keys
• Leveling Pads
• Spanner
• Scissor
