Hand held Laser Welding

Salient Features

  • The welding speed is 2-10 times faster than the traditional welding speed.
  • It can help you to save at least two welders a year.
  • Laser welding consumes less material and has a long-life.
  • Easy to operate, no need welding work license
  • New corner can also weld products beautifully.
  • The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.
  • No deformation, no weld scar, welding firmly.
  • Safer and more environmentally friendly.

Welding Depth Data

Power Stainless Steel Carbon Steel Aluminum
1000W 1.50 mm 1.50 mm 0.50 mm
1500W 2.50 mm 2.50 mm 0.60 mm
2000W 3.00 mm 3.00 mm 0.80 mm

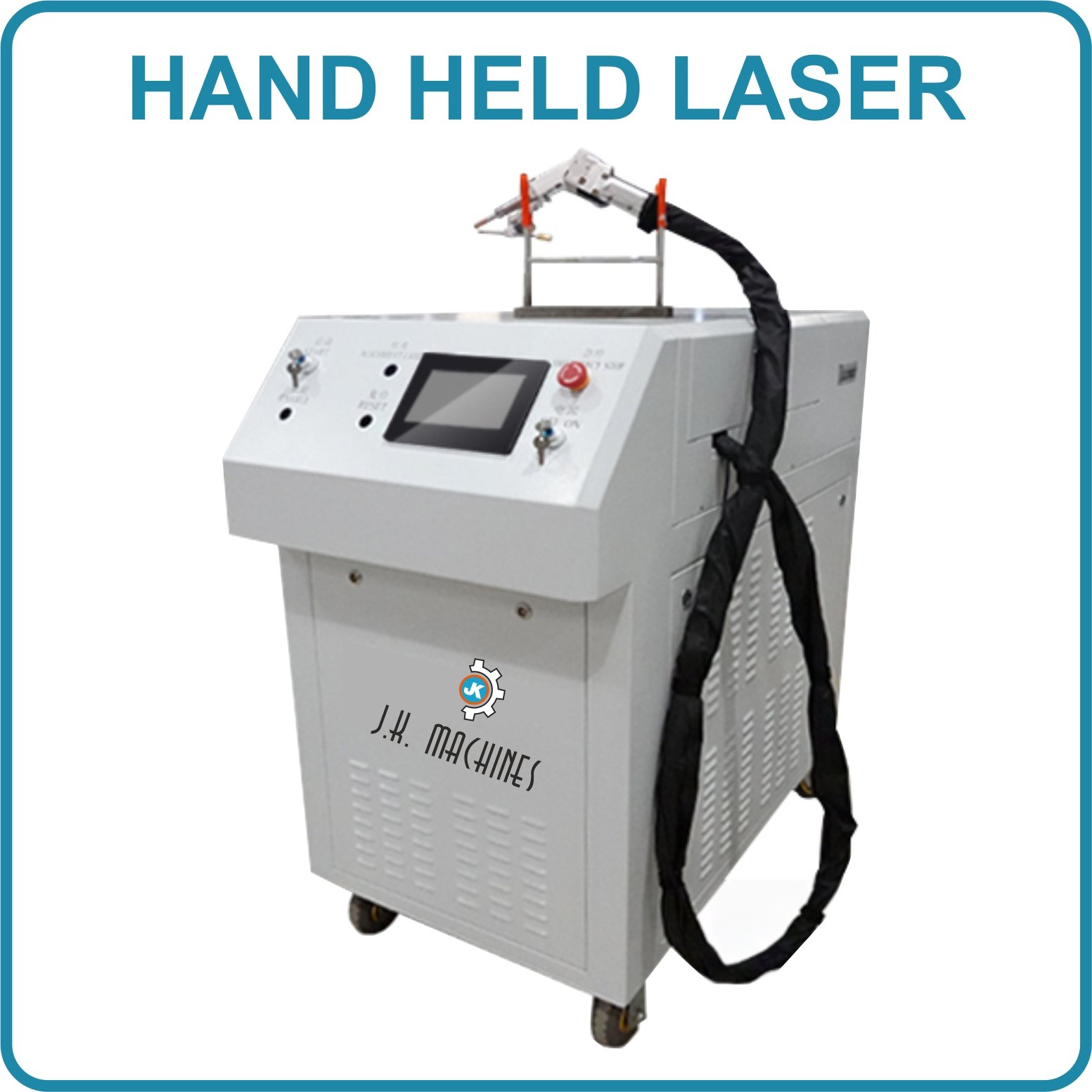

Hand Held Laser

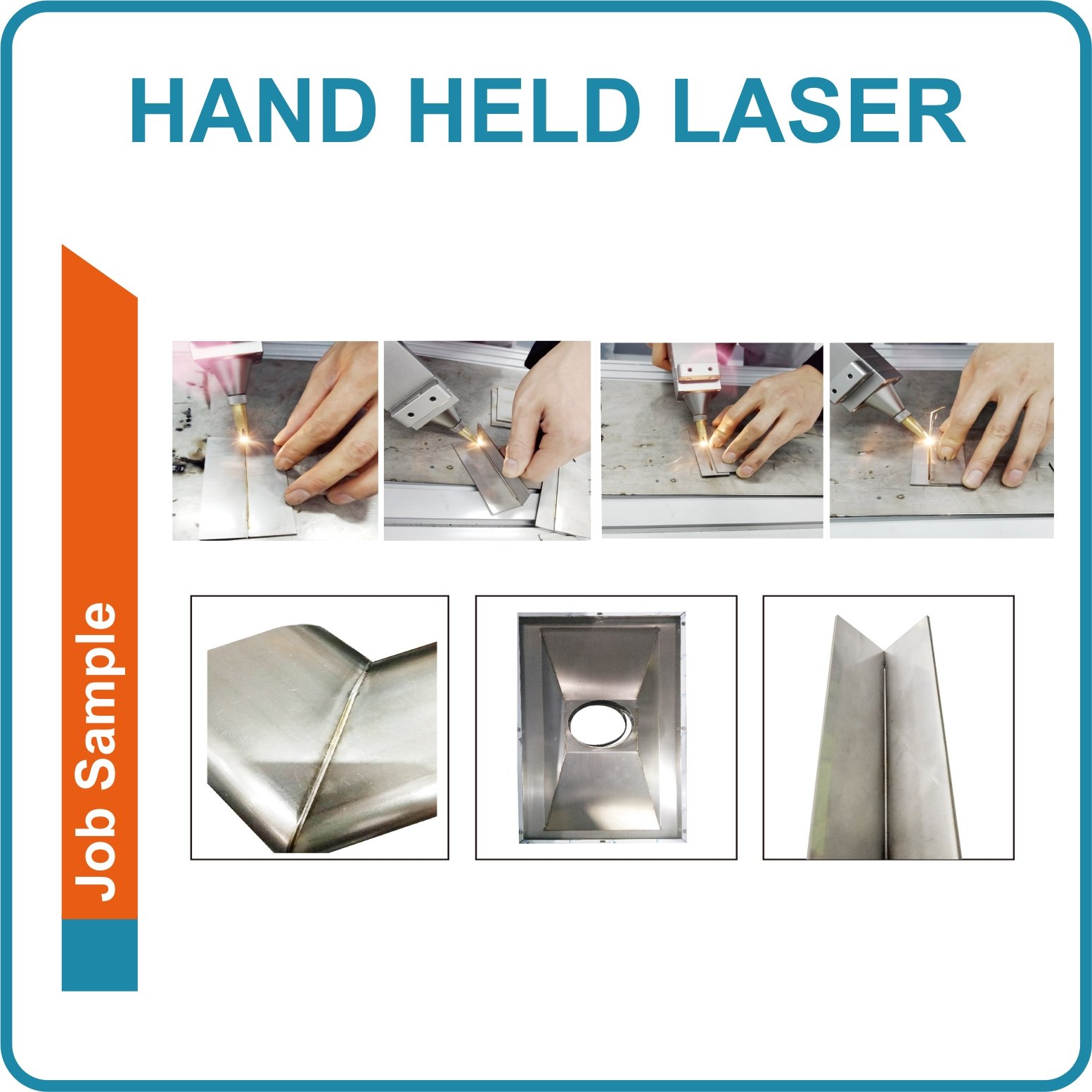

Job Sample

Job Sample

Send Enquiry

Interested in the Hand Held Laser Welding Machine? Contact us now.

Request Quote

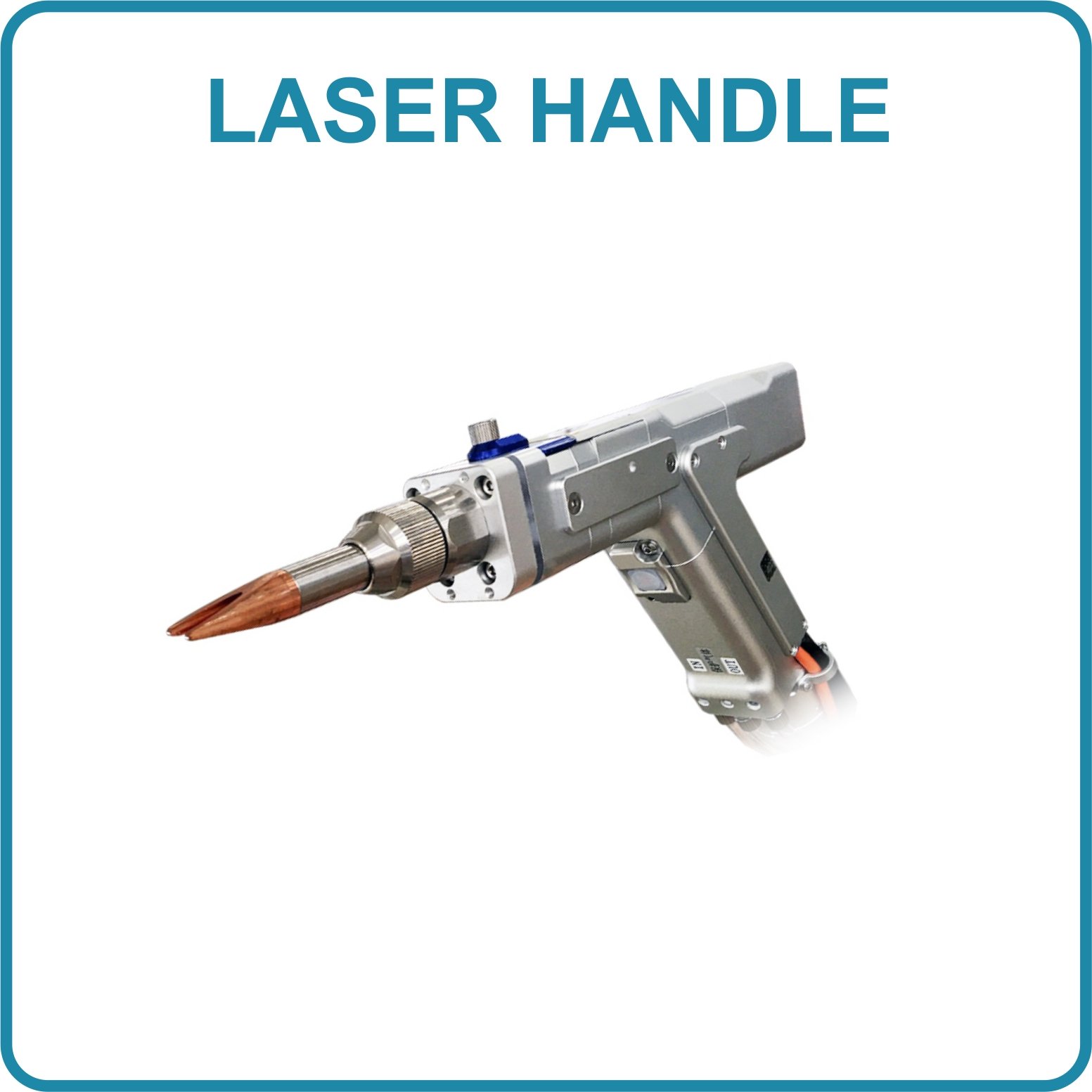

Laser Handle

Laser Handle

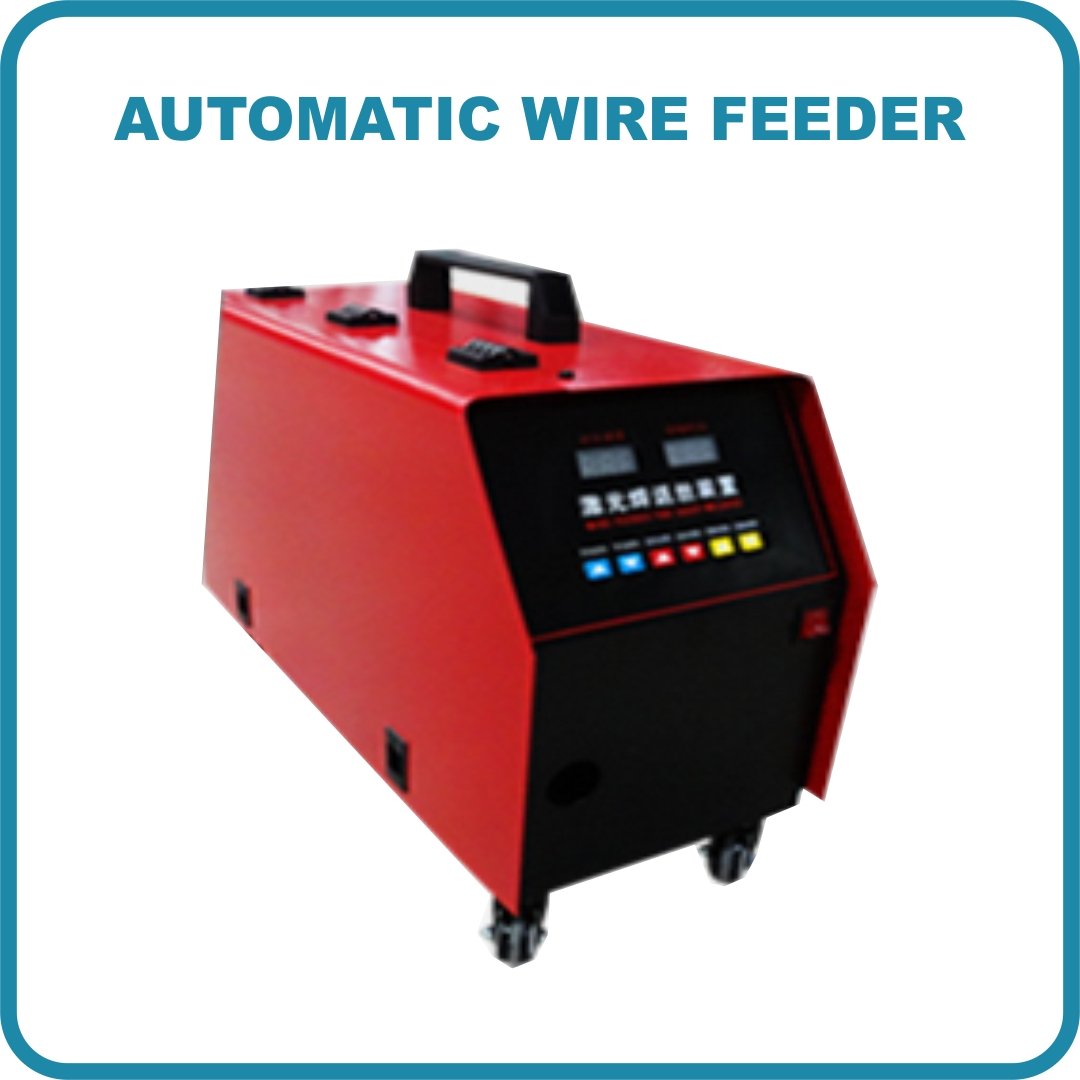

Automatic Wire Feeder

Automatic Wire Feeder

Technical specifications

Technical Specification Unit JK-1000W JK-1500W JK-2000W JK-3000W
Max. Energy of single pulse J 100 100 120 125
Laser Type - CW Continuous Laser
Laser wavelength nm 1064
Laser welding frequency HZ 1000
Laser spot diameter mm 0.40 - 2.00
Weld penetration mm 0.10 - 3.00
Power can be adjustable % 5 - 100
Pulse width ms 1
Cooling water temperature deg. <35
Temperature protection deg. 40
Cooling water flow min. 15
Protective gas - Nitrogen gas
Input power supply V Single Phase 220v / 50Hz Three Phase 380v/50Hz
Machine weight kg 390 390 420 560
