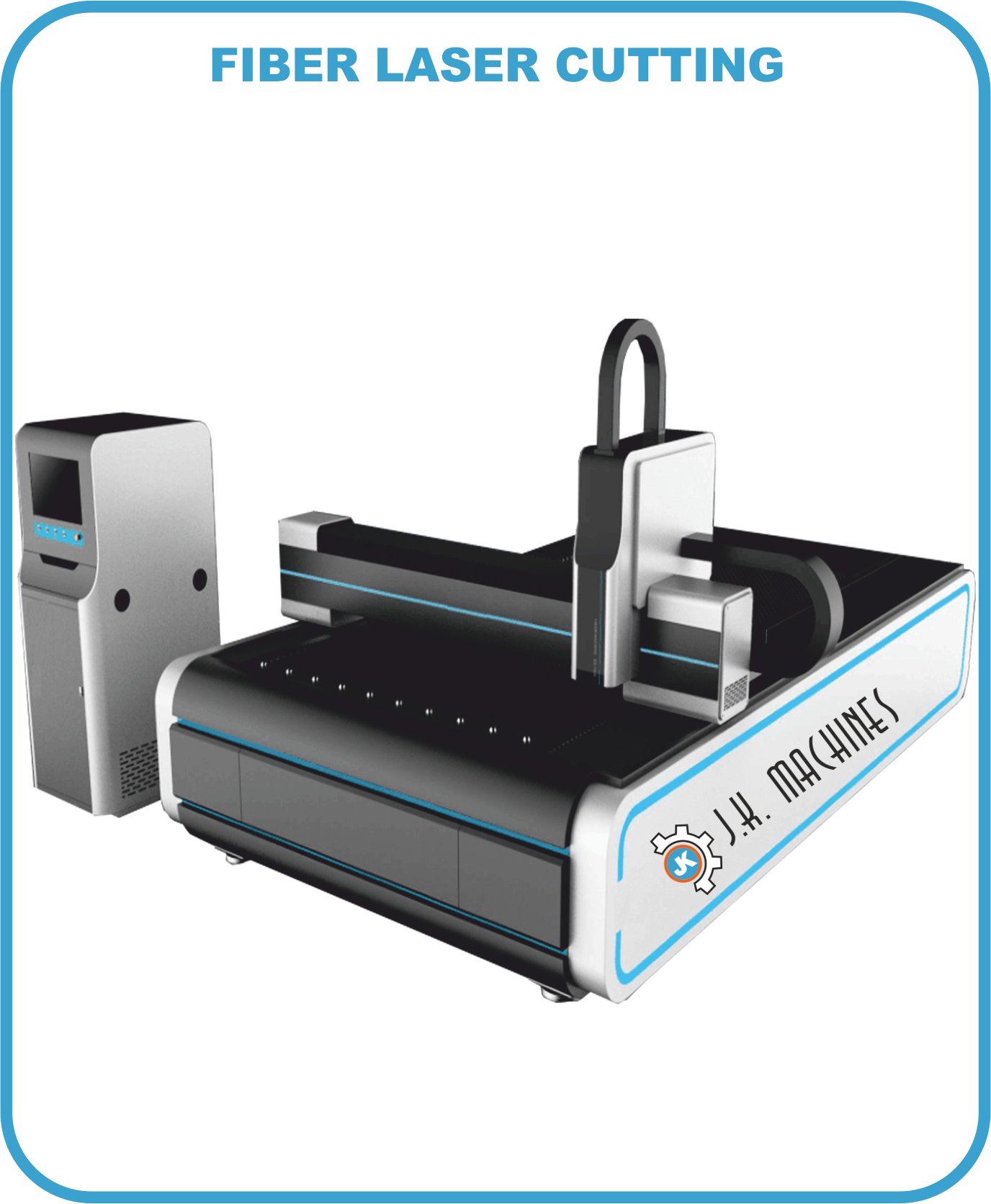

Fiber Laser Cutting

Home/Fiber Laser Cutting

Salient Features

  • Heavy Structure
  • Raycus laser Source (IPG Optional)
  • Panasonic/Yaskawa Servo Motors & Drives
  • Auto Height Adjustment
  • High Precision Taiwan TBI ball screw
  • Easy to maintain and cutting surface is smooth, no burr, saving time and labor.

Send Enquiry

Interested in Fiber Laser Cutting Machines? Contact us now.

Request Quote
Laser Cutting
Fiber Laser Cutting

Standard Accessories

  • Leveling Pads - 6 Nos.
  • Tool Kit - 1 Set
  • Protect Glass - 1 Nos.
  • Nozzle - 2 Nos.
  • Ceramic Ring - 1 Nos.
  • Wrench - 1 Set

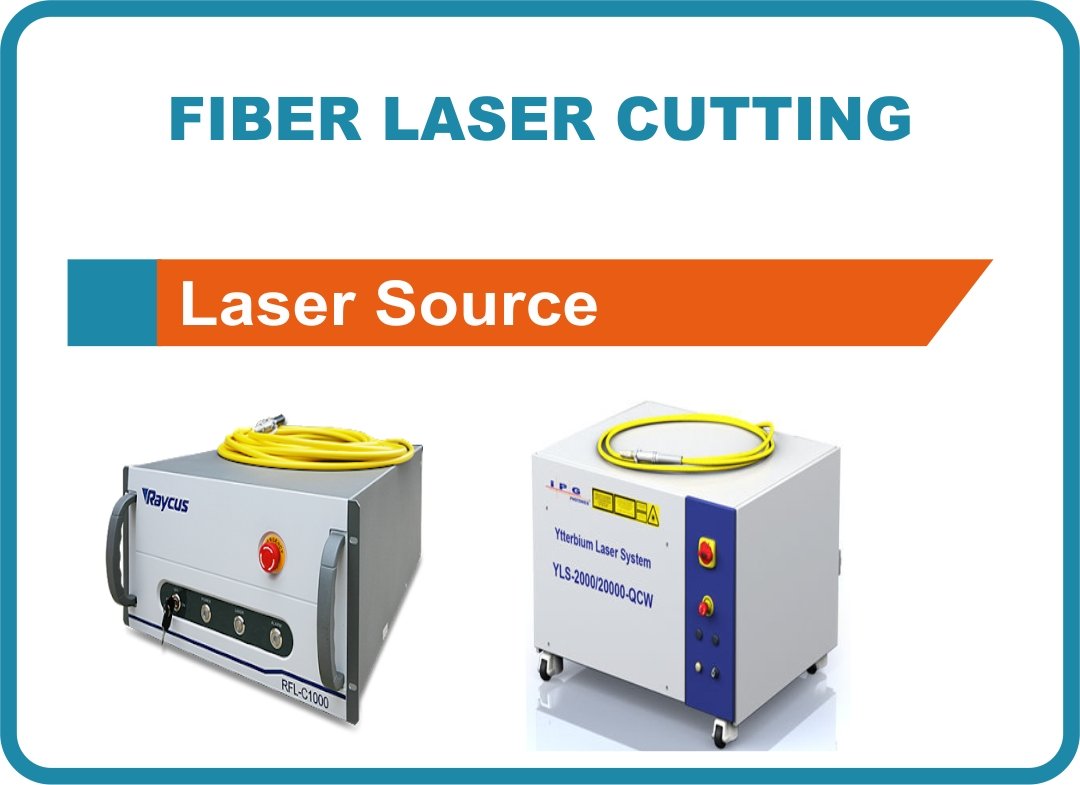

Laser Source

Laser Source

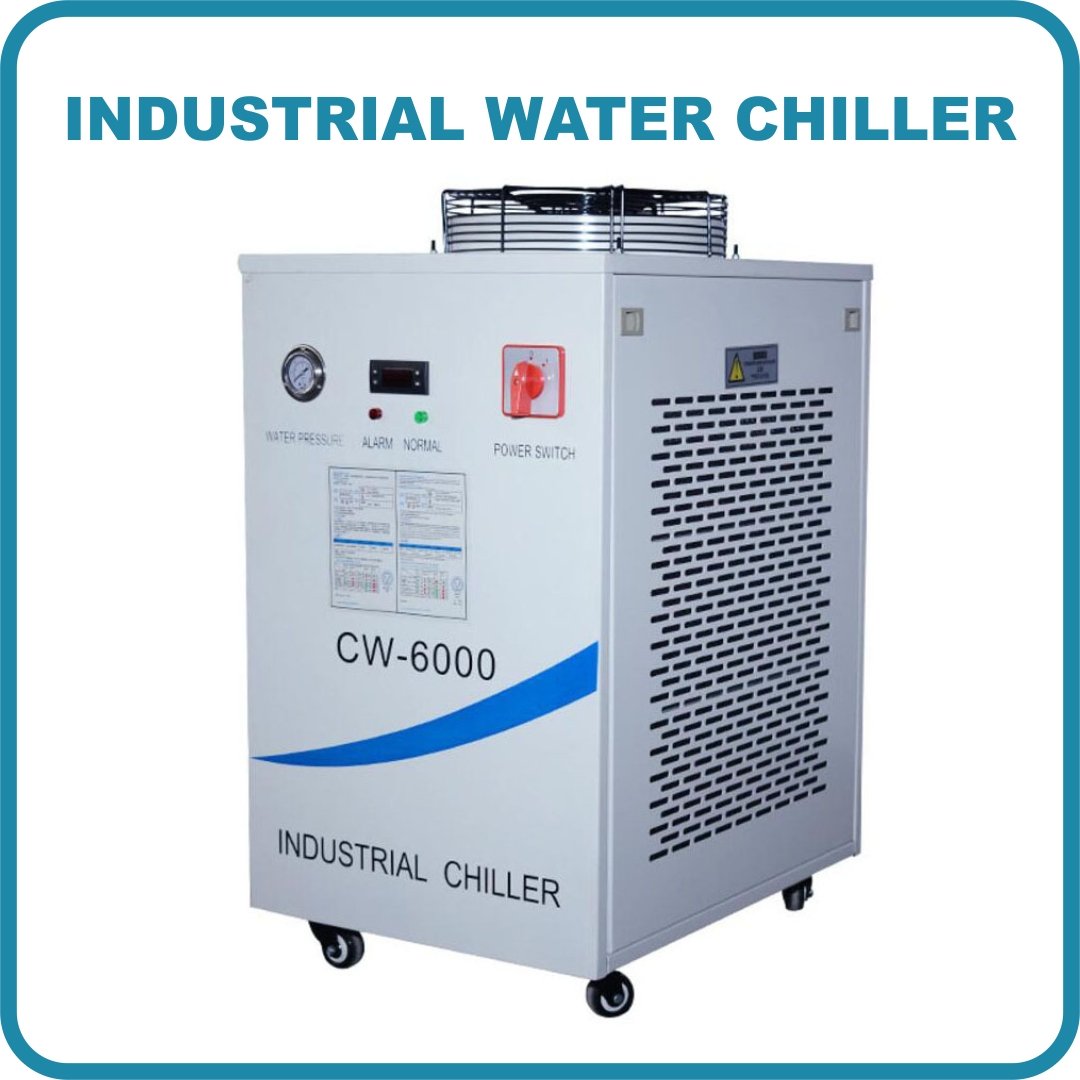

Industrial Water Chiller

Industrial Water Chiller

Technical specifications

Technical Specification Unit JK-1330FL JK-1530FL
Travel of working table ( X Axis ) mm 1300 1500
Travel of working table ( Y Axis ) mm 3000 3000
Travel of working ( Z Axis ) mm 120 120
Fiber Laser Power w 1000 / 1500 / 2000 / 3000
X, Y Position Accuracy mm/min ± 0.02
Max. Cutting Speed mm/min 12000
Max. Rapid Travel mm/min 60000
Graphic Format - BMP / PLT / DST / DXF / AI
Compatible Software - Coral Draw / AutoCad / Photoshop
Control System - AuTech
Working Voltage V AC230V SINGLE PHASE / AC415V/50Hz 3 PHASE
Connected Load Kw 10
Drive Motor - Servo Motor
Machine Weight Kg 1800 2000
