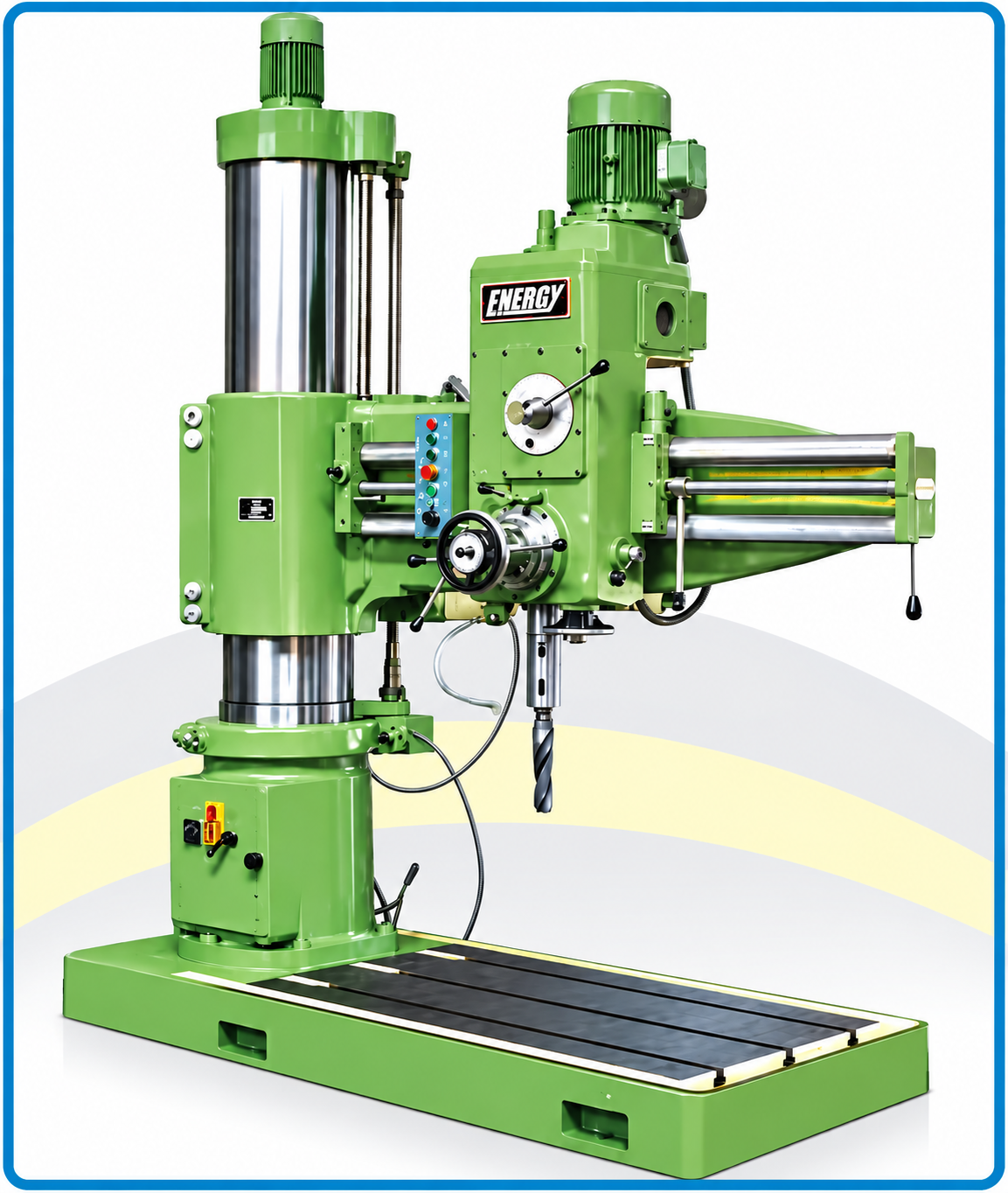

Radial Drilling Machine (Energy)
Salient Features
- Double Column Construction for Rigid & effortless centering.
- Generously proportioned & well Adequately ribbed base plates, column and arm for maximum rigidity and minimum deflection
- Major casting are stress relieved and sufficiently rigid to meet requirements of IS : 2199.
- Arm guide surfaces are precision ground.
- Hardened and ground gears for Minimum wear and tear.
- Precision hardened and ground spindle.
- Friction type disc clutch is adapted to observed impact force ceased by vertical movement of spindle and effectively protects all transmission units inside gear box.
- Disc clutches is employed for starting and stopping the spindle.
- Special arm elevating safety device is provided to prevent arm from down, when machine is used for long time.
- Machine tested as per IS : 2199.
Technical specifications
| TECHNICAL SPECIFICATION | UNIT | RDM 50/1200 RDM 60/1200 |
RDM 50/1500 RDM 60/1500 |
RDM 50/1900 RDM 60/1900 |
RDM 50/2300 RDM 60/2300 |
|---|---|---|---|---|---|
| Drilling Capacity in Steel / CI for | |||||
| 50 mm Drilling Machine | 50/60 | 50/60 | 50/60 | 50/60 | |
| Drilling Capacity in Steel/CI for | |||||
| 60 mm Drilling Machine | 60/70 | 60/70 | 60/70 | 60/70 | |
| Tapping Capacity: | |||||
| Metric Treads fine pitch | mm | 48 x 3 | 48 x 3 | 48 x 3 | 48 x 3 |
| Any other Threads fine pitch | inch | 1 3/4" | 1 3/4" | 1 3/4" | 1 3/4" |
| Light boaring capacity in Steel | mm | 120 | 120 | 120 | 120 |
| DRILL HEAD | |||||
| Taper in spindle | MT5 | MT5 | MT5 | MT5 | |
| Number of spindle speed / range | rpm | 12 / 40-1700 | 12 / 40-1700 | 12 / 40-1700 | 12 / 40-1700 |
| Number of feed / range | mm/rev | 6 / 0.12-1.25 | 6 / 0.12-1.25 | 6 / 0.12-1.25 | 6 / 0.12-1.25 |
| WORKING RANGE | |||||
| Drilling radius: Min. / Max. | mm | 505 / 1200 | 530 / 1500 | 530 / 1890 | 550 / 2350 |
| Drill head traverse | mm | 695 | 970 | 1360 | 1800 |
| Distance between spindle axis & column | mm | ||||
| face: Min. / Max. | 355 / 1050 | 355 / 1325 | 355 / 1715 | 355 / 2150 | |
| Distance between base plate & spindle : | mm | ||||
| Maximum | 1420 | 1425 | 1425 | 1625 | |
| Minimum (Spindle retracted) | 695 | 675 | 675 | 705 | |
| Spindle travel | mm | 325 | 325 | 325 | 325 |
| Diameter of column | mm | 300 | 350 | 350 | 400 |
| Arm traverse | mm | 725 | 750 | 750 | 940 |
| BASE PLATE | |||||
| Working surface of base plate (l x w) | mm | 1300 x 800 | 1490 x 910 | 1720 x 910 | 2300 x 1000 |
| Height of base plate | mm | 210 | 210 | 210 | 220 |
| Overall size base plate | mm | 2000 x 830 | 2220 x 935 | 2420 x 925 | 3100 x 1015 |
| Nominal size of T slots | mm | 22 | 22 | 22 | 22 |
| Number of T slots / Spacing | No. / mm | 3 / 250 | 3 / 250 | 3 / 250 | 3 / 250 |
| ELECTRICAL | |||||
| Power supply A.C. | V.ph. Hz | 415, 3, 50 | 415, 3, 50 | 415, 3, 50 | 415, 3, 50 |
| Power of drill head motor | Kw | 3.6 / 4.5 | 3.6 / 4.5 | 3.6 / 4.5 | 3.6 / 4.5 |
| Arm Elevating Motor | Kw | 1.5 | 1.5 | 1.5 | 2.2 |
| DIMENSIONS & WEIGHT | |||||
| All Over Length | mm | 2090 | 2400 | 2750 | 3310 |
| All Over Width | mm | 995 | 1010 | 1010 | 1025 |
| All Over Height | mm | 3100 | 3150 | 3150 | 3400 |
| Dimension of Packing case Length | 2265 | 2520 | 3020 | 3600 | |
| Width | mm | 1200 | 1230 | 1230 | 1350 |
| Height | mm | 2800 | 2800 | 2800 | 3200 |
| Net weight (approx) | kg. | 3200 | 3500 | 4000 | 4600 |
| Gross weight (approx) | kg. | 4000 | 4550 | 5200 | 5800 |
