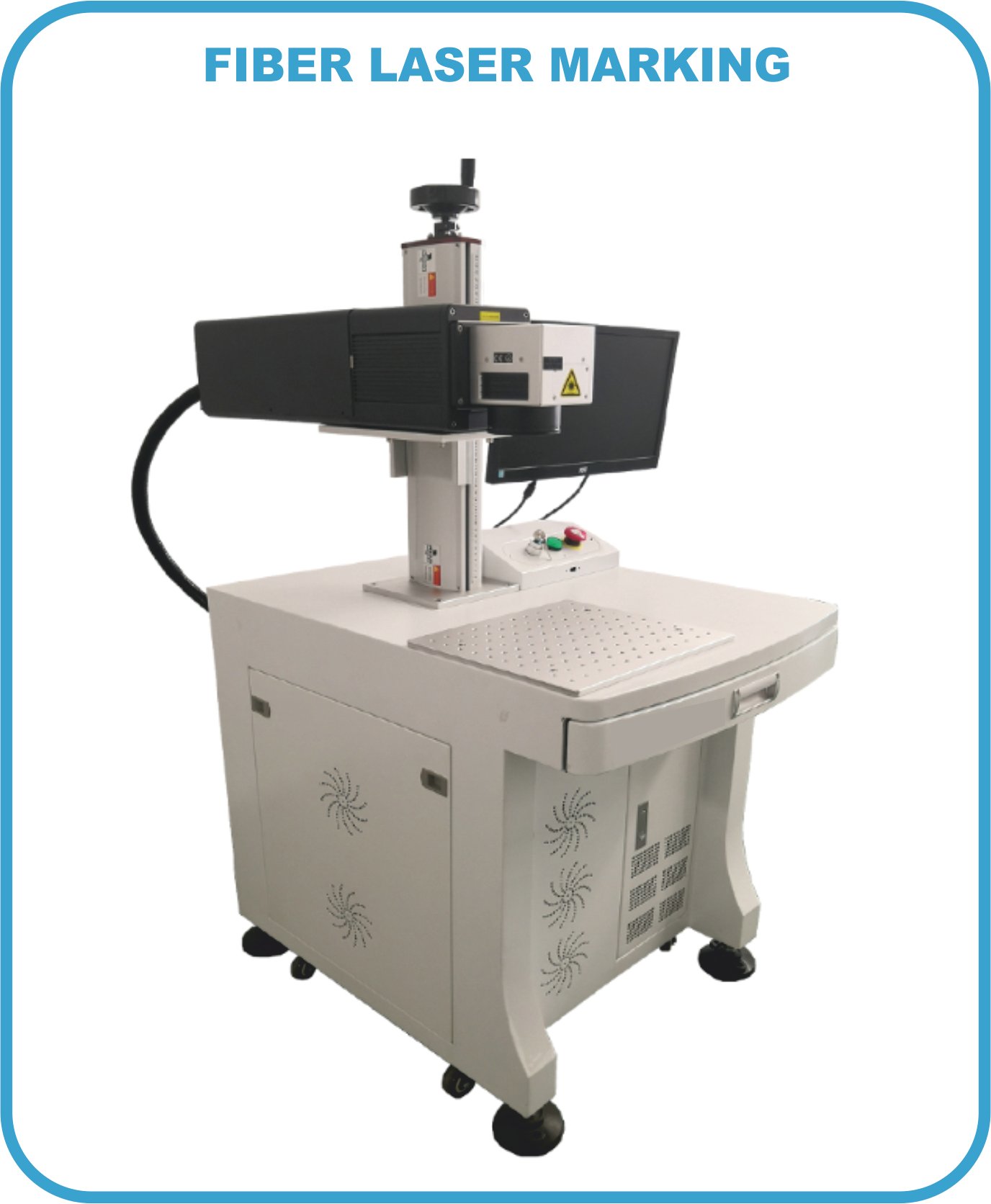

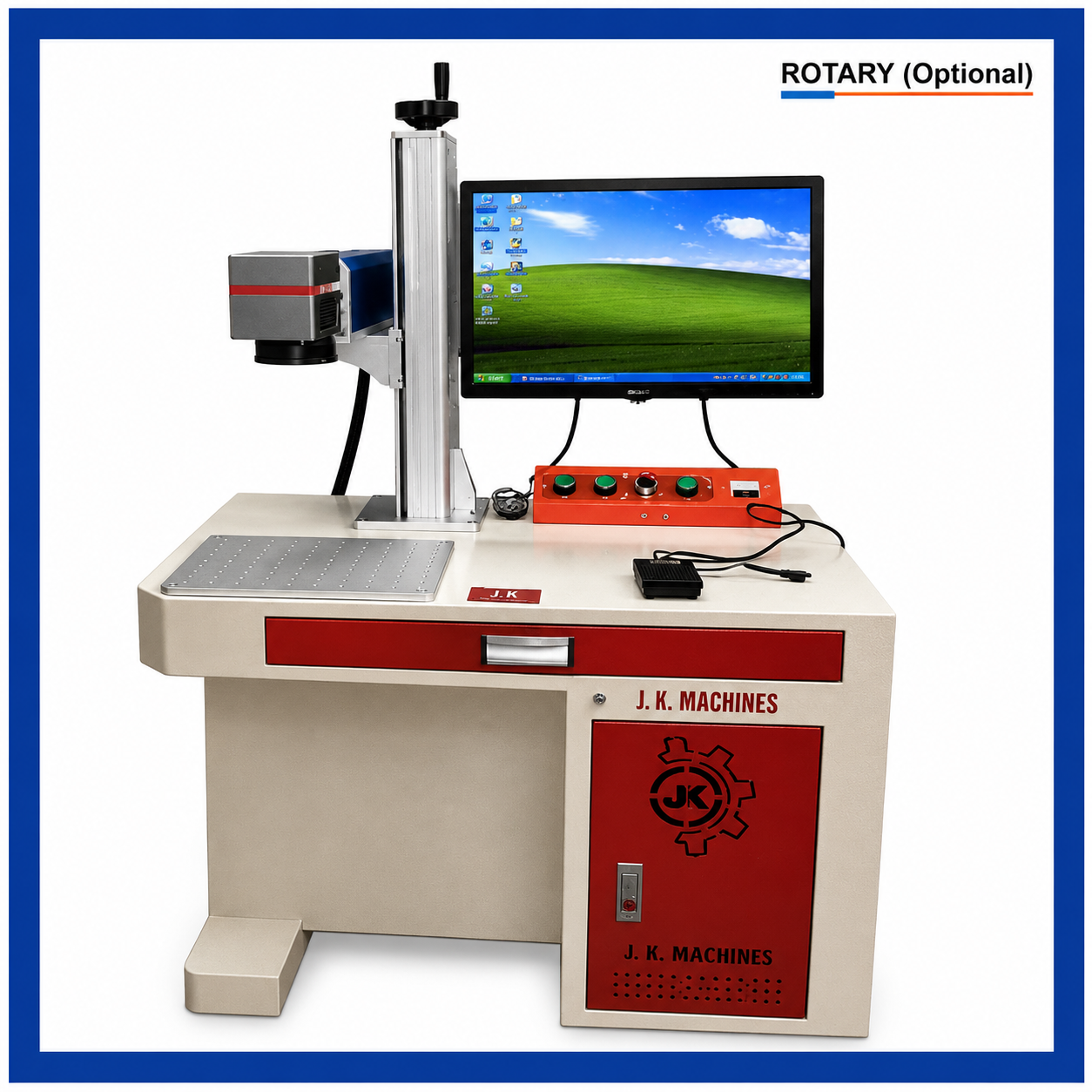

Fiber Laser Marking / Engraving
Salient Features
- Fiber laser: high-speed scanning galvo mirror; English operation system.
- Strong software functions, convenient Control Panel, set and deal separately.
- Professional control software is compatible with AutoCAD, CorelDraw and Photoshop.
- Achieves auto arrangement and amendment of letter, symbol, pattern, figure, image, bar code, 2D code, serial number, and auto increasing.
- Supports PLT, PCX, AI, DXF, BMP, JPG format pictures.
- Available for using TIF, SHX character code.
Application Accessories
- Z axis motorized
- Portable type machine
- Online UPS

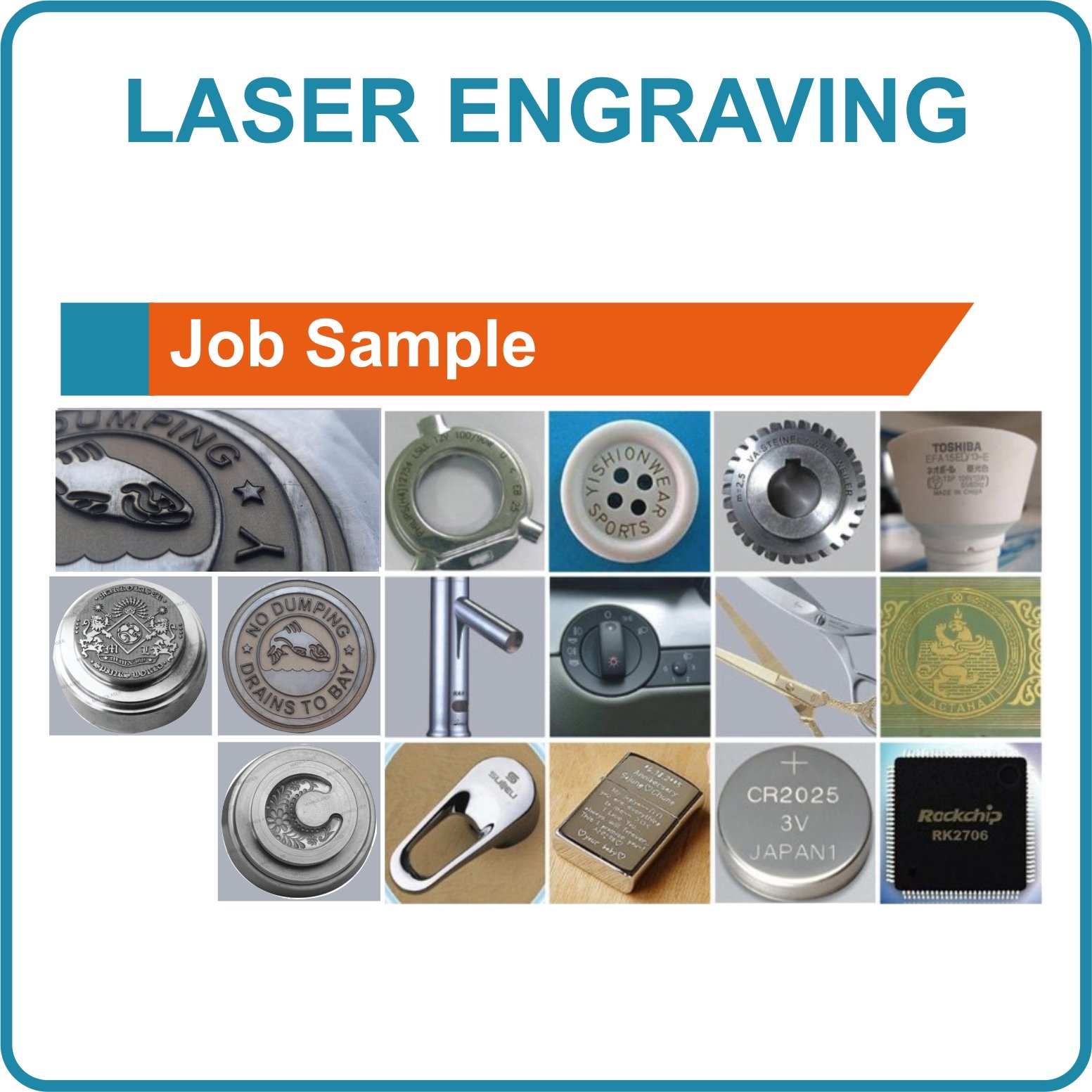

Job Sample
Technical specifications
| Specification | Details |
|---|---|
| Laser Type | FIBER / UV / MOPA / 3D |
| Laser Power | 20W, 30W, 50W, 60W, 80W, 100W |
| Marking Area | 100 x 100 mm (200 x 200 mm Optional) |
| Marking Depth | 0.05 - 1.20 mm |
| Wavelength | 1060 nm |
| Beam Quality | <1.50 |
| Repeat Frequency | 10KHz - 100KHz |
| Beam Divergence | - 0.30 - +0.30 mrad |
| Resolution | 18um |
| Repeatability | 50um |
| Linear Speed | 800 Characters |
| Marking Linear Speed | 12000 mm/s |
| Min. Line Width | 0.012 mm |
| Min. Charater Size | 0.15 mm |
| Repeat Accuracy | +- 0.003 mm |
| Input Power | 0.60 Kw |
| Power Supply | Single Phase AC200V/50Hz |
