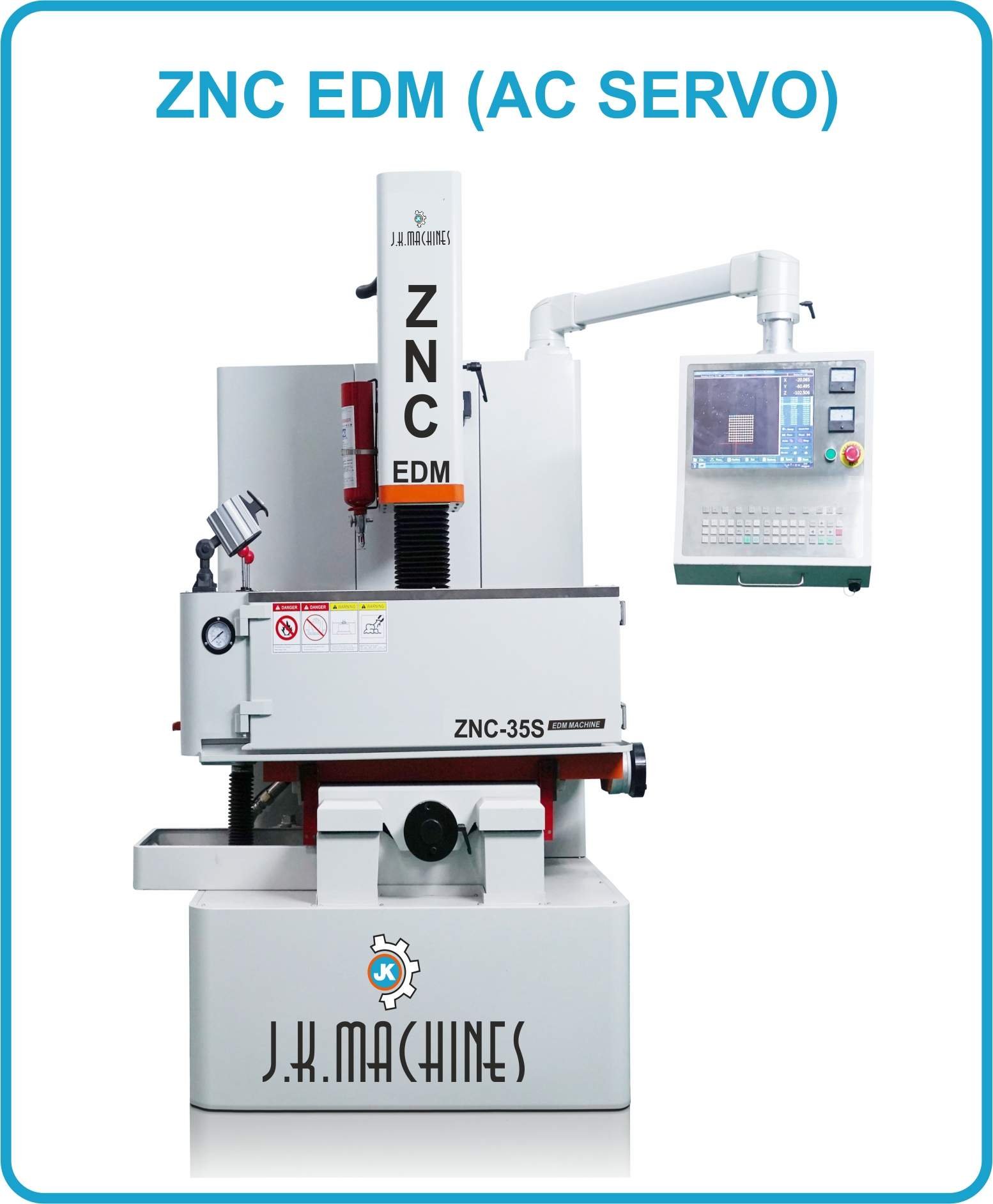

ZNC EDM (AC SERVO)
Salient Features
- 15" LCD color display
- Programmable Z axis with 1 micron resolution
- 50 step, 100 program storage
- Built in 3 axis DRO
- Precision co-ordinate table on flat & V type turcide coated guide ways driven by ball screw
- Double door large work tank for ease of loading & unloading of workpiece
- Oil level alarm, Oil temperature alarm
- Highly accurate work head with the quill running on preloaded cross roller bearing and ball screw
- High speed quill movement with Panasonic AC servo motor
- Attractive compact looks
- Hand held multi function remote control
- Z axis lock function
- mm and Inch display
- Reverse servo machining
- Safe & stable, No arc machining
- Like to like material machining
- Calibrated EDM technology
- Automatic lubrication system
- Fire extinguisher, Smoke detector alarm
- Self diagnostic trouble shooting with alarm
- Sleep mode, Auto mode
- Efficient dielectric system with double filteration
- Copper to Steel, Graphite to Steel, Copper to Carbide Parameters can be set
Standard Accessories
- Axis Corrector
- Flat Electrode Holder
- Round Electrode Chuck
- Flushing Aids
- Clamping Kit
- Mounting/Leveling Pads
- Tool Kit
Application Accessories
- Servo stabilizer
- Edm oil
- Orbital attachment
- Translatory head
- Magnetic chuck
- Mirror finishing circuit
Technical specifications
| Specification | Unit | ZNC-30S | ZNC-35S | ZNC-45S | ZNC-50S | ZNC-70S |
|---|---|---|---|---|---|---|
| Work Tank (WxDxH) | mm | 785 x 540 x 320 | 875 x 540 x 380 | 1205 x 600 x 450 | 1255 x 685 x 480 | 1940 x 1050 x 600 |
| Working Table | mm | 500 x 300 | 630 x 350 | 700 x 450 | 800 x 500 | 1200 x 700 |
| Longitudinal Travel (X axis) | mm | 300 | 350 | 450 | 500 | 700 |
| Transverse Travel (Y axis) | mm | 200 | 250 | 350 | 400 | 600 |
| Quill Travel (Z axis) | mm | 200 | 200 + 200 | 250 + 250 | 250 + 250 | 300 + 300 |
| Quill to Working Table | mm | 560 | 650 | 700 | 760 | 1000 |
| Max. Electrode Weight | kg | 50 | 75 | 75 | 100 | 150 |
| Max. Workpiece Weight | kg | 450 | 500 | 700 | 1000 | 2000 |
| Oil Tank Capacity | Ltr | 400 | 450 | 500 | 550 | 800 |
| Drive System for Z Axis | - | AC Servo | AC Servo | AC Servo | AC Servo | AC Servo |
| Machine Weight | kg | 1200 | 1300 | 1600 | 1900 | 3500 |
| Machine Dimension | mm | 1575 x 1180 x 2320 | 1605 x 1265 x 2500 | 1920 x 1580 x 2380 | 2070 x 1635 x 2450 | 2100 x 2000 x 2800 |
| Pulse Generator | ||||||
| Max. Working Current | amp | 30 ( 60AMP & 90 AMP OPTIONAL) | ||||
| Max. MRR | mm³/ min | 300 ( 600 & 900 OPTIONAL) | ||||
| Min. Electrode Wear | % | ≤0.1 | ||||
| Best Surface Finish (Ra) | µ | 0.15 with mirror function / 0.40 without mirror function | ||||
| Power Supply | volt | 3 Phase, AC415V/50Hz | ||||
| Connected Load | kVA | 8 ( 10 & 12 OPTIONAL ) | ||||
