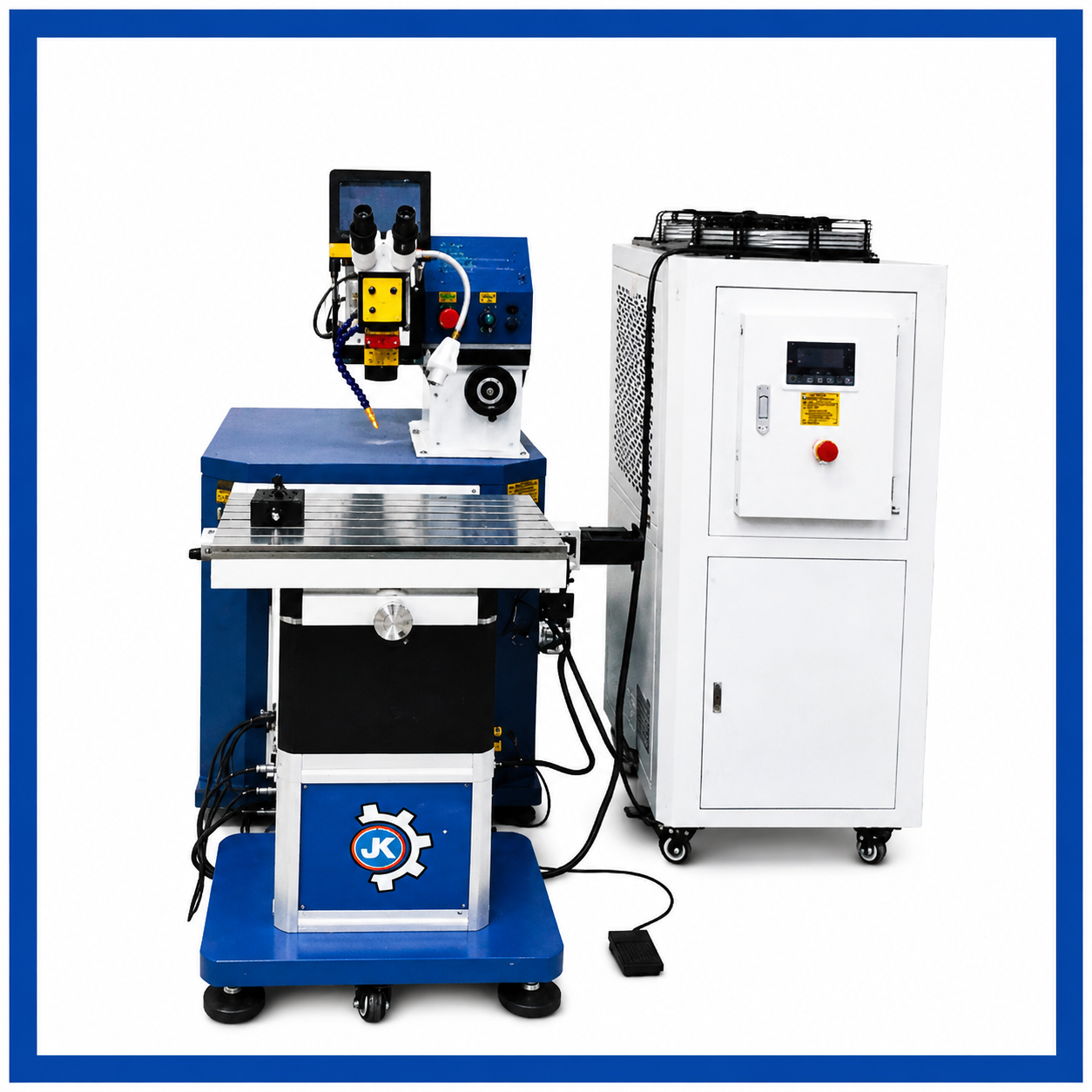

Laser Welding Machine
Salient Features
- Welding rod diameter is 0.20 - 0.60 mm.
- Little affect area, no distortion of the processing parts.
- No etching effect after welding, low oxidation rate, the color of the processing parts is intact.
- No blow holes appeared after welding.
- Can process at the welding point, especially applicable to repair moulds & dies.
- Laser welding can be done on hard parts hardness up to 50-60 HRC.
YAG laser technology for stable welding
FIBER Laser Machine also available
Weldable Materials
Laser welding can be used in welding SS, H13, D2, D3, SKD11, SKD61, P20, STARVAX, ALUMINIUM, COPPER, EN31, NICKEL etc.

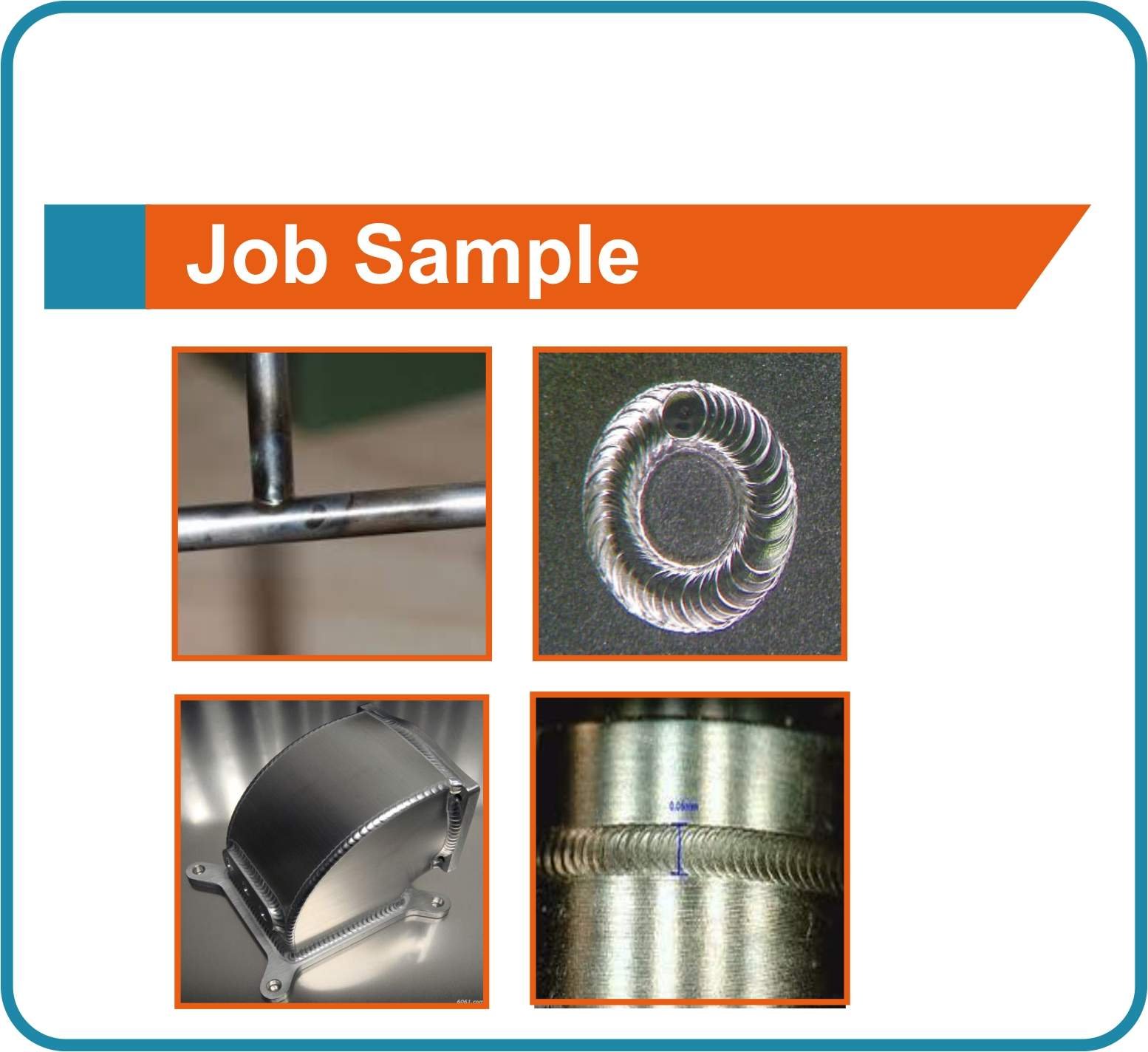

Job Sample
Type of Table
- Manual
- Motorized
- Automatic
Structure of Machine
- Normal
- Crane Type
Application Accessories

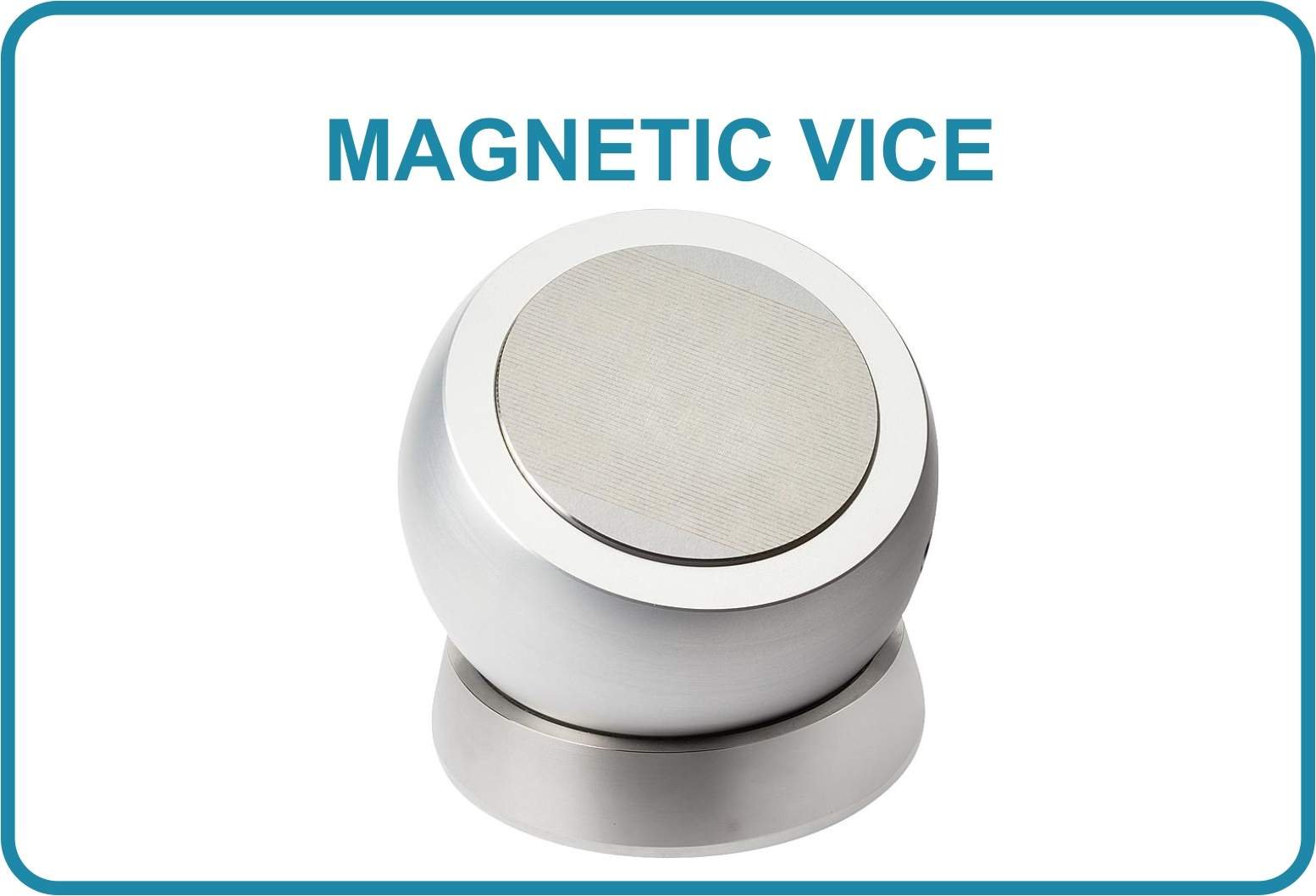

Magnetic Vice

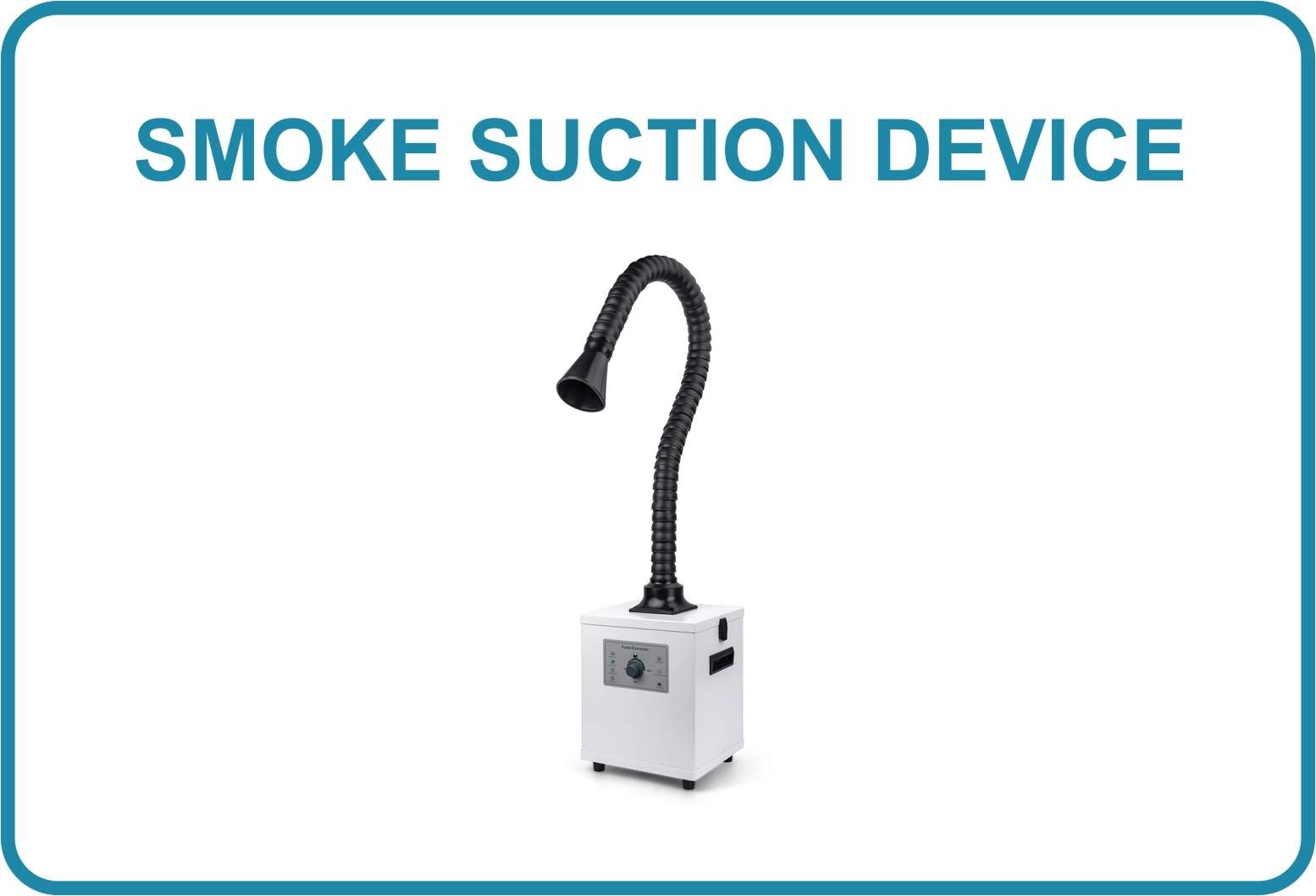

Smoke Suction

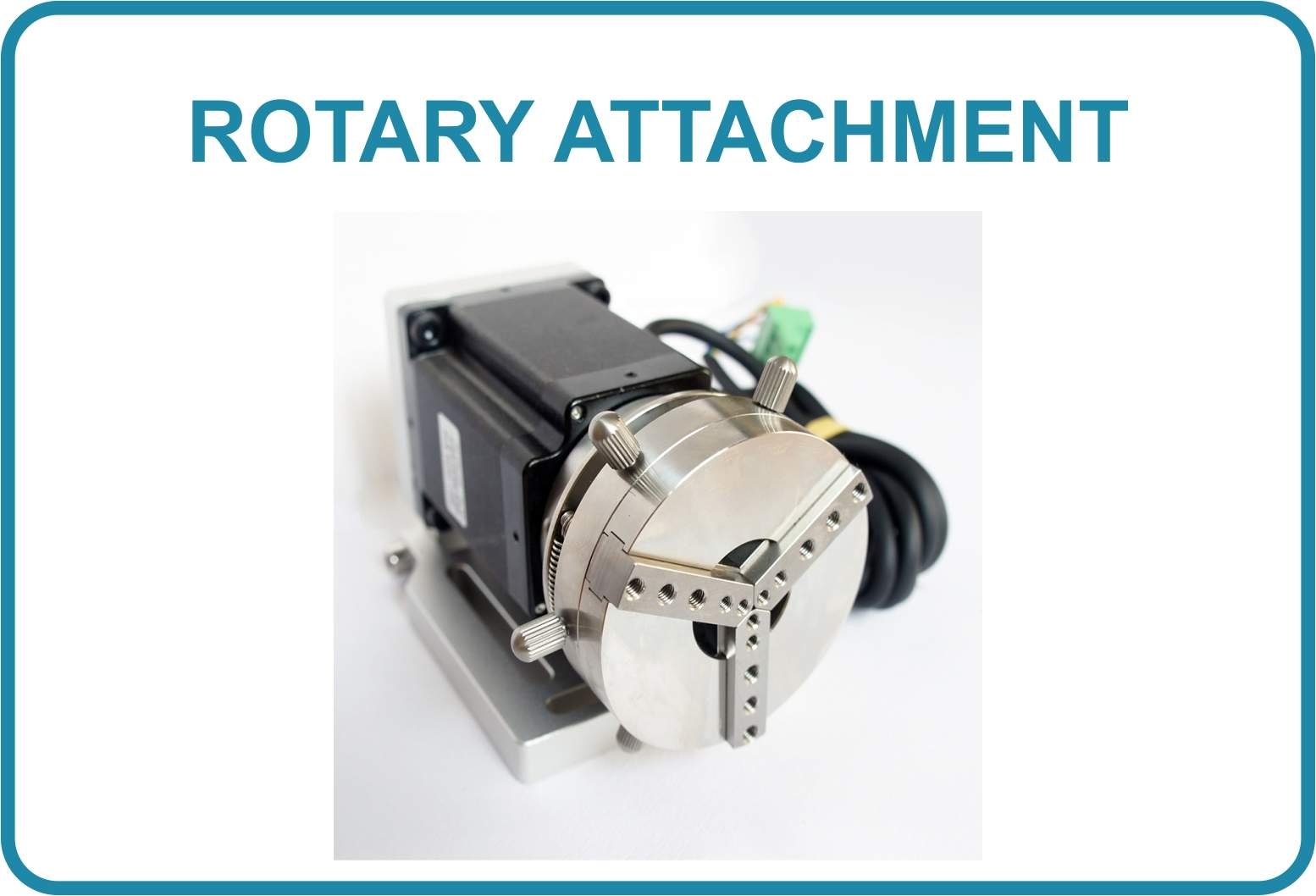

Rotary

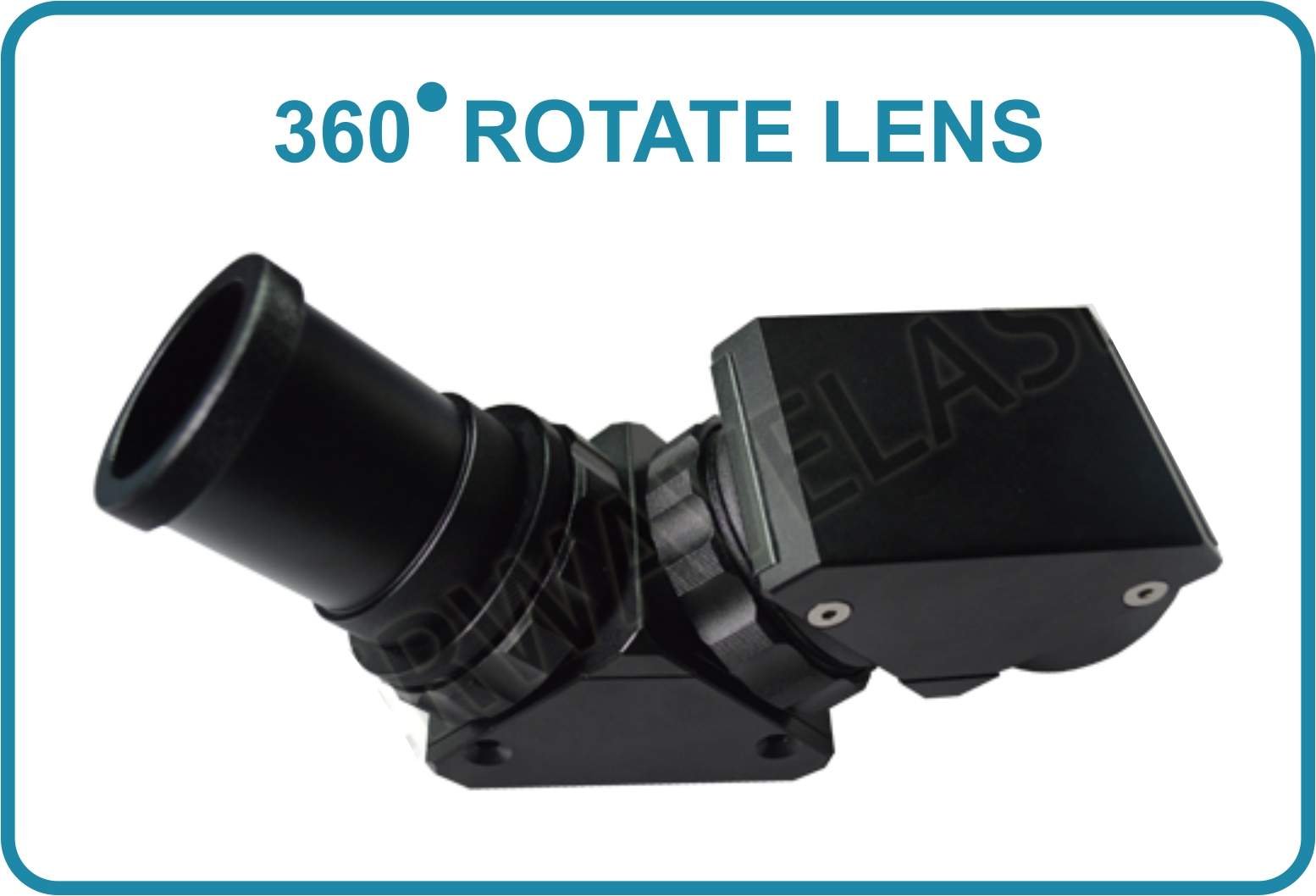

360° Rotate Lens
.jpg)
CRANE TYPE

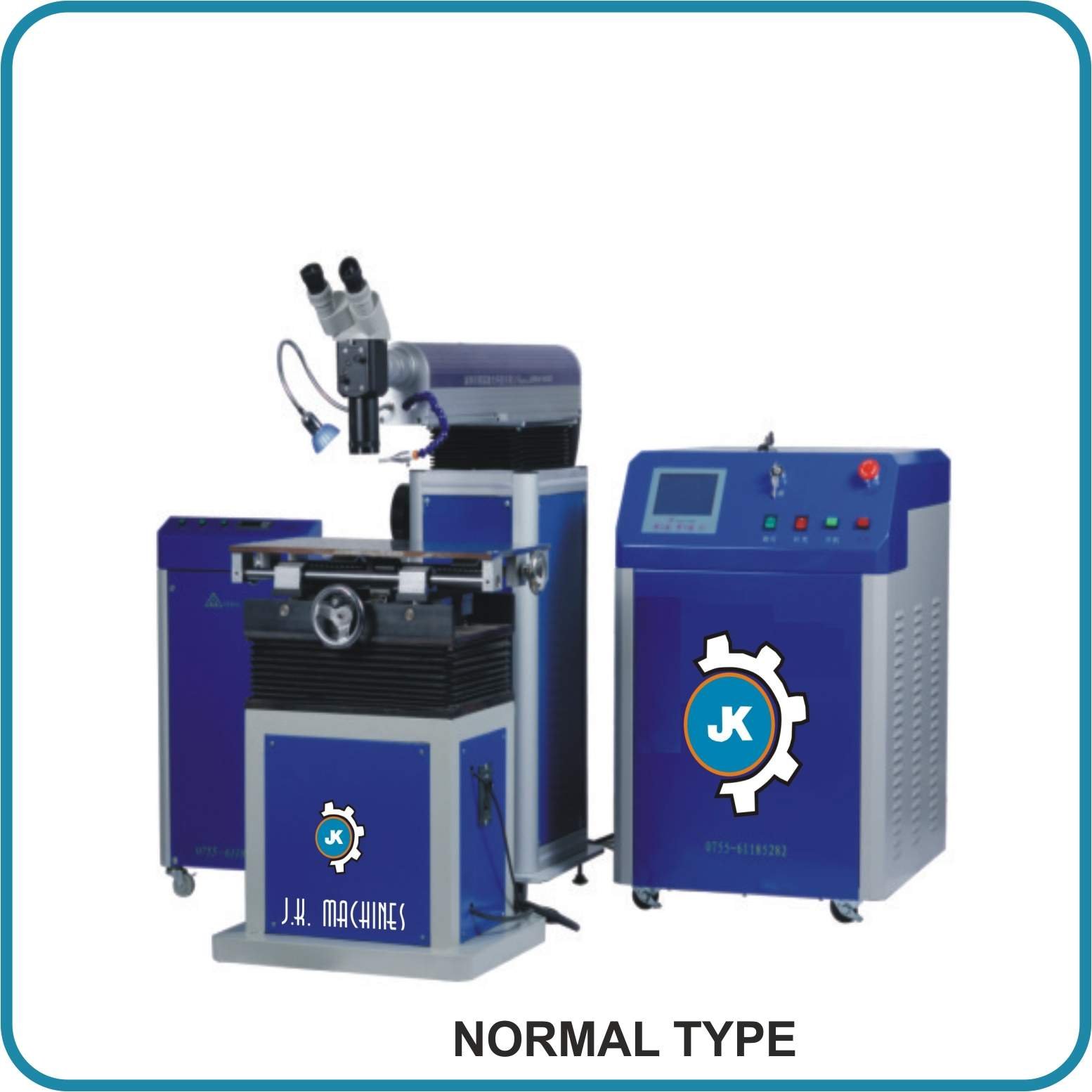

NORMAL TYPE
Technical specifications
| Technical Specification | Unit | JKW-200 | JKW-400 | JKW-600 |
|---|---|---|---|---|
| Average Laser Power | w | 200 | 400 | 600 |
| Max. Energy of Single Pulse | j | 75 | 120 | 120 |
| Laser Wave lenght | nm | 1064 | ||
| Pulse Width | ms | 0.30 - 20 | ||
| Laser Welding Frequency | Hz | 0.50 - 100 | ||
| Spot Size Range | mm | 0.20 - 2.00 | 0.30 - 3.00 | 0.30 - 3.50 |
| Welding Size | mm | 0.10 - 0.40 | 0.10 - 0.60 | 0.10 - 0.80 |
| Input Power Supply | v | 220v Single Phase 50Hz | 380v 3 Phase 50Hz | 380v 3 Phase 50Hz |
| Power Consumption | kw | 8 | 12 | 15 |
| Water Pressure Protection | mpa | 0.025 | ||
| Cooling Water Temperature | degree | 35 | ||
| Temperature Protection | degree | 45 | ||
| Cooling Water Flow | L/min | 10 | ||
| Cooling Way | - | Water Cooling | ||
| Laser Type | - | Pulse | ||
| Machine Over all Dimension | mm | 1000 x 600 x 1500 | ||
| Machine Over all Weight | kg | 300 | ||
