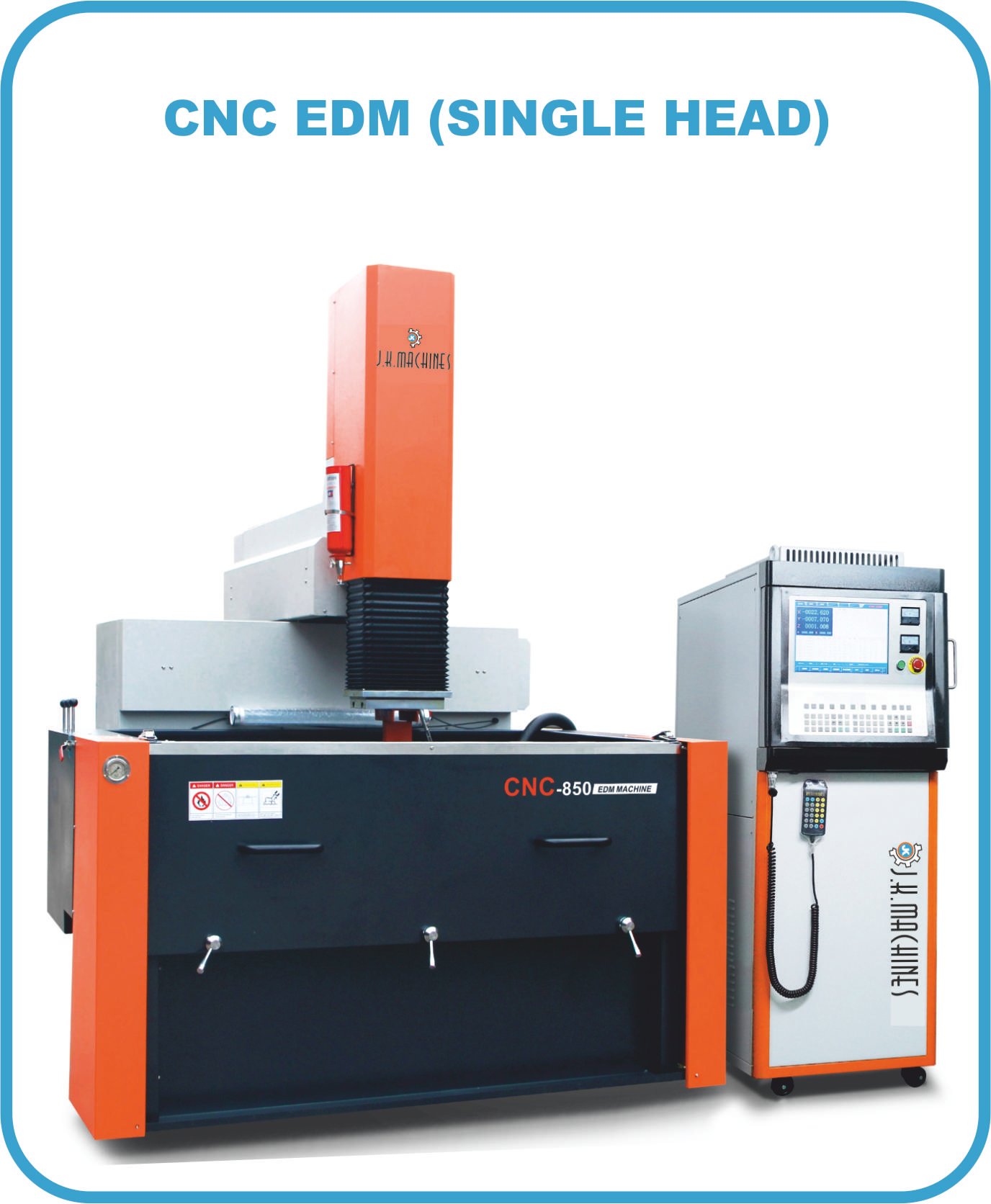

CNC EDM Fixed Table Moving Head (Single Head)

Send Enquiry

Interested in the CNC EDM Fixed Table Moving Head (Single Head)? Contact us now.

Request Quote

Salient Features

  • Panasonic AC servo for X, Y & Z axis. Improves efficiency
  • 15 inch LCD screen
  • Mirror processing special circuit (Optional)
  • Automatic protection circuit for carbon deposition prevention
  • Multi functional hand control box
  • Compact elegant looks
  • Axis resolution – 1 micron
  • Smoke sensor and fire extinguisher
  • High lifting height for ultra deep hole

Standard Accessories

  • Axis Corrector
  • Flat Electrode Holder
  • Round Electrode Chuck
  • Flushing Aids
  • Clamping Kit
  • Mounting/Leveling Pads
  • Tool Kit

Application Accessories

  • 4 & 5 axis wondows based controller
  • Servo stabilizer
  • Edm oil
  • 60 AMP & 90 AMP Controller
  • Magnetic Chuck
  • Work holding Attachments
  • Oil cooler
  • C Axis

Technical specifications

Specification Unit CNC-540 CNC-850 CNC-1260
Work Tank (WxDxH) mm 1370 x 720 x 450 1800 x 1100 x 600 2000 x 1300 x 700
Working Table mm 850 x 500 1050 x 600 1250 x 800
Longitudinal Travel (X axis) mm 500 800 1200
Transverse Travel (Y axis) mm 400 500 600
Quill Travel (Z axis) mm 300 400 450
Quill to Working Table mm 690 900 1000
Max. Electrode Weight kg 150 200 300
Max. Workpiece Weight kg 1800 3000 3500
Drive System for X,Y,Z Axis - AC Servo AC Servo AC Servo
Machine Weight kg 2500 4500 5500
Machine Dimension mtr 2.5x2.5x2.7 2.8x2.7x2.7 3.1x3.2x3.3
Pulse Generator
Max. Working Current amp 30 ( 60AMP & 90 AMP OPTIONAL)
Max. MRR mm3/ min 300 (600 & 900 OPTIONAL)
Min. Electrode Wear % ≤0.1
Best Surface Finish (Ra) µ 0.15
Power Supply volt 3 Phase, AC415V/50Hz
Connected Load kVA 10 (12.50 & 15 Optional)
Dielectric tank
Oil Tank Capacity Ltr 800 1500 1800
Oil Pump Motor Power HP 0.50 0.75 0.75
