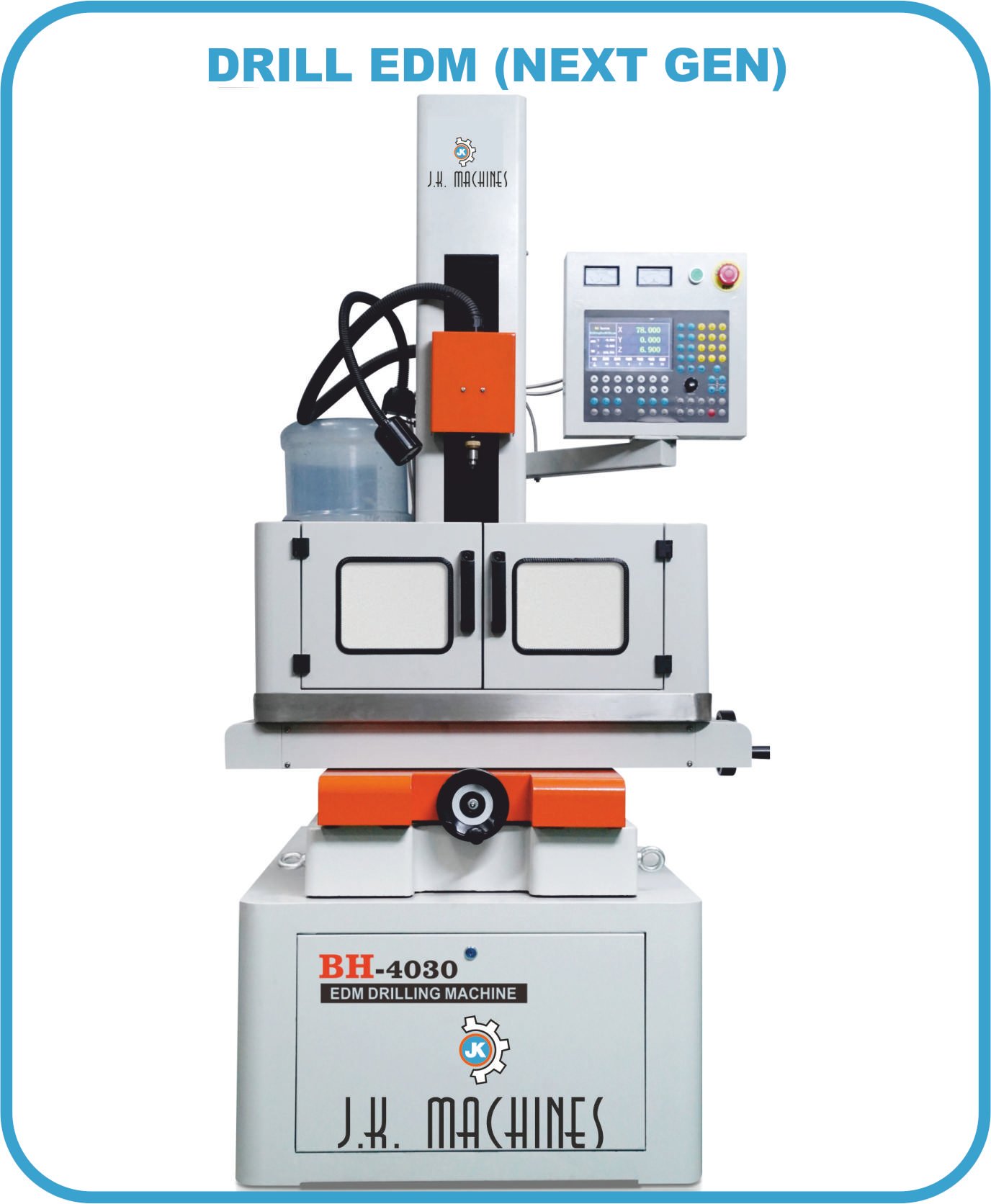

Drill EDM (Next Gen)
.jpg)
Salient Features
- Ball screw for X and Y axis
- L. M. guide for Z axis
- Parameter changing is allowable during operation
- Job material steel/copper/brass/aluminium/carbide
- Adjustable high pressure compact water pump with filtration
- 3 axis DRO with depth control
- Motorized work head movement
- Electrode dressing facility
- Job holding fixture & clamp
- Tap water is used as dielectric fluid
- Precise granite table
- Compact footprint
- Brass & copper electrodes can be used
- Machine lamp
- Automatic lubrication pump

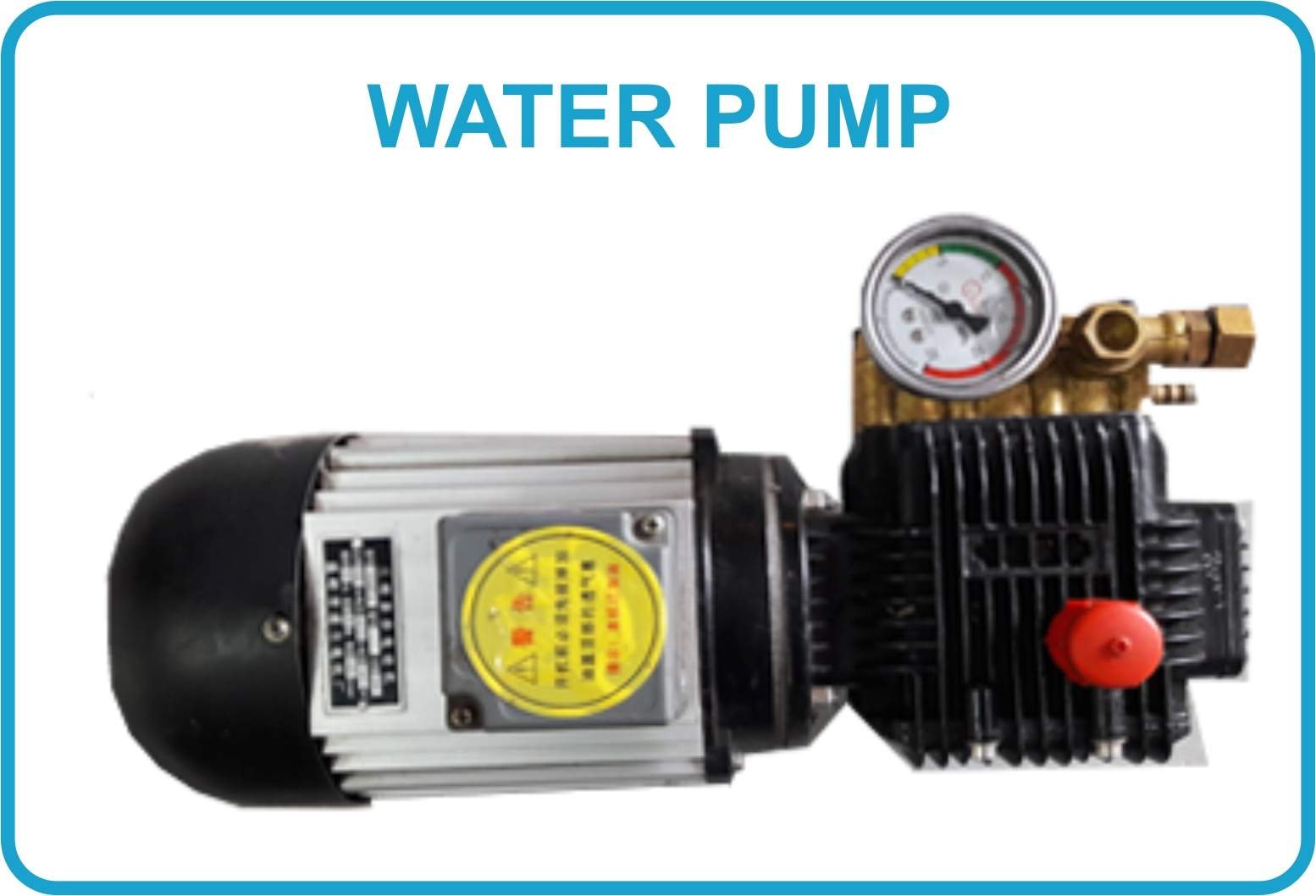

Water Pump

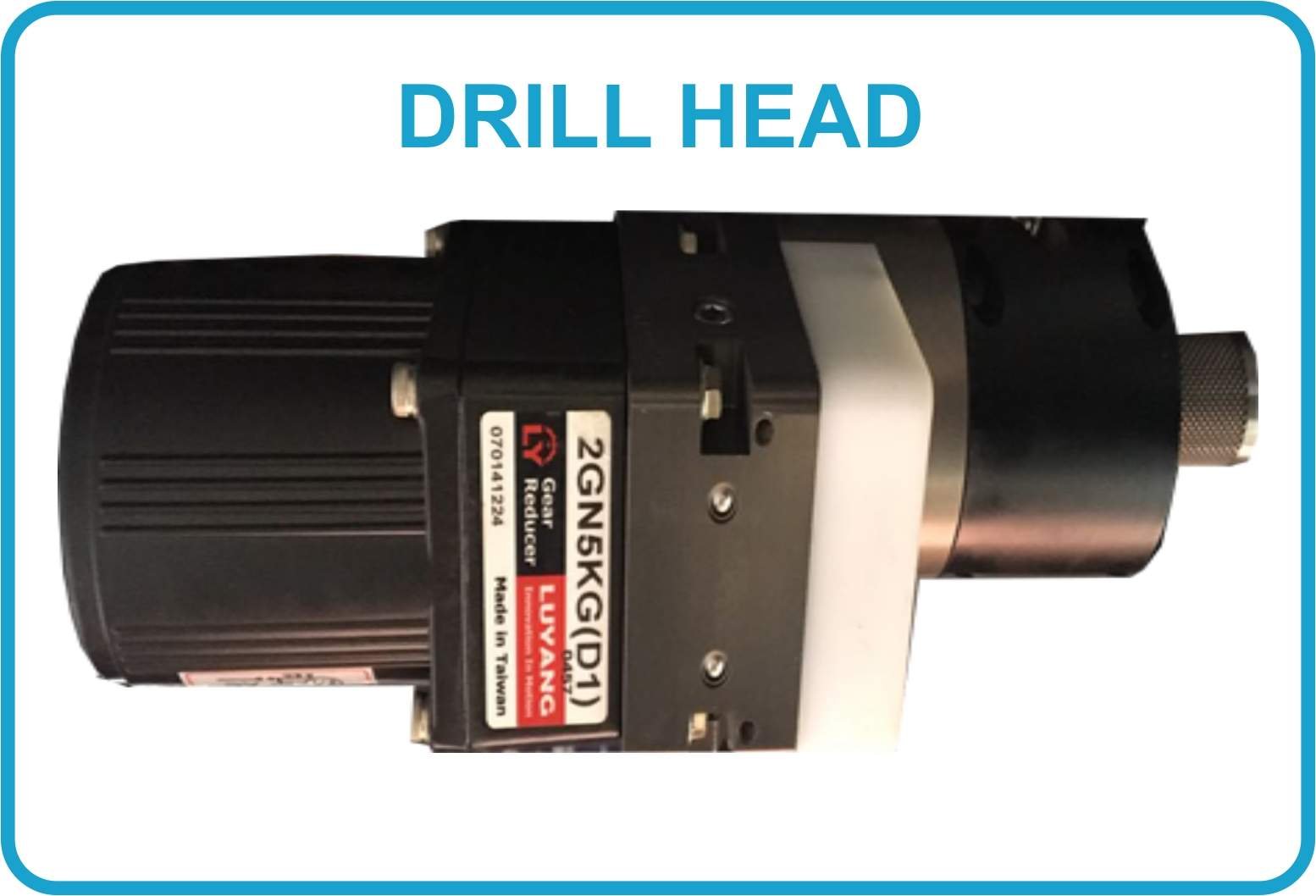

Drill Head
Standard Accessories
- Leveling Pads : 4 Nos
- Clamping Kit: 1 Set
- Tool Kit: 1 Set
- Water Can: 2 Nos.
- Guides: 3 Nos.
- Electrodes: 30 Nos.
- Rubber Seal: 5 Nos
Application
- Start hole for wire cut edm
- Gas discharge
- Ejector pins
- Cooling pins
- Air vent for forging die
- Jet hole
- Filter hole
- Remove broken tap

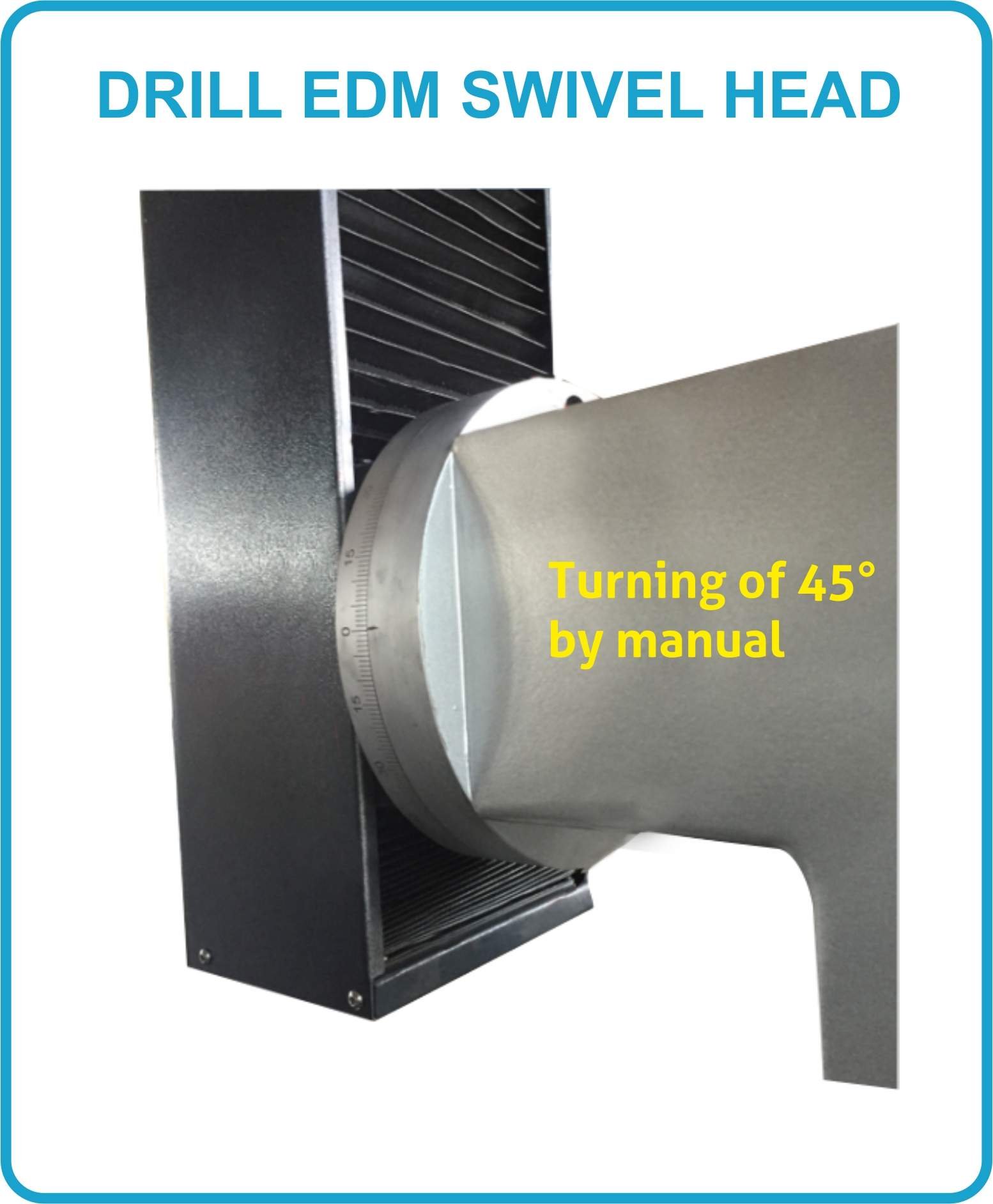

Swivel Head (Optional)
Technical specifications
| Technical Specification | Unit | BH-4030 | BH-5040 |
|---|---|---|---|
| Dimension of working table ( X x Y ) | mm | 400 x 600 | 440 x 630 |
| Travel of working table ( X x Y ) | mm | 300 x 400 | 400 x 500 |
| Z axis travel ( Z + W ) | mm | 400 + 350 | 400 + 350 |
| Distance from quill to table | mm | 85 - 435 | 85 - 485 |
| Max. machining current | amp | 30 | 30 |
| Drilling range | mm | 0.30 - 3.00 (0.20 Upto 10 mm Depth) | |
| Max. electrode length | mm | 500 | 500 |
| Max. workpiece weight | kg | 300 | 300 |
| Max. machining speed | mm/min | 30 - 60 | 30 - 60 |
| Max. power consumption | kVA | 3.5 | 3.5 |
| Drive system for Z axis | - | Servo Motor | |
| Input power supply | V | 3 Phase, 415V , 50Hz | |
| Machine dimension | mm | 1060 x 1050 x 1950 | 1250 x 1150 x 2100 |
| Machine weight | kg | 500 | 600 |
