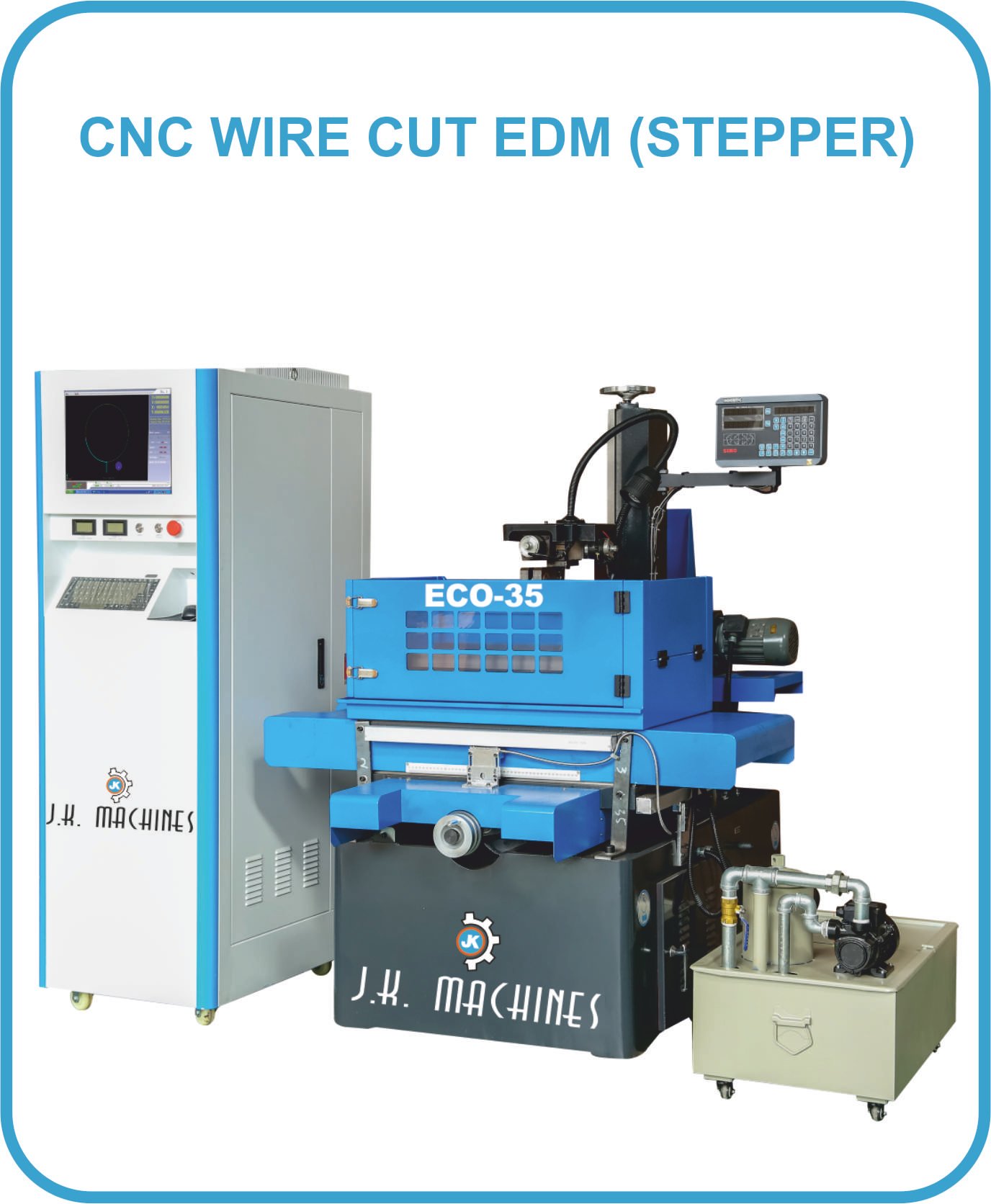

CNC Wirecut (DC Stepper)
Salient Features
- XY axis on L. M. guide driven by ball screw
- Wire drum on L. M. guide
- Reciprocating molybdenum wire technology
- Fine pitch screw for UV axis moment
- Stepper motor for X, Y, U, V axis
- Flexible job stand for job mounting
- Variable speed AC motor for wire drum
- Sturdy base
- Low running cost
- User friendly software interface
- Color LCD display
- Display of machining time
- 2D/3D graphic simulation of wire path
- Centerlised Lubrication pump
- Display of operator help and error message
- Simultaneous control of X, Y, U, V axis
- Single block execution
- Rotation/mirror of program
- Automatic center find, edge find
- Program input from USB
- Wire brake protection mode
- Can cut complex profile job
- Industrial CPU
- Auto short-circuit recovery
- Z axis motorized
- Water tank with filter
Application Accessories
- High Speed Controller
- 10 & 15 degree taper
- Magnetic filter
- Servo motor on X & Y Axis
- Linear Guide on Z Axis
- Linear Guide for U & V Axis

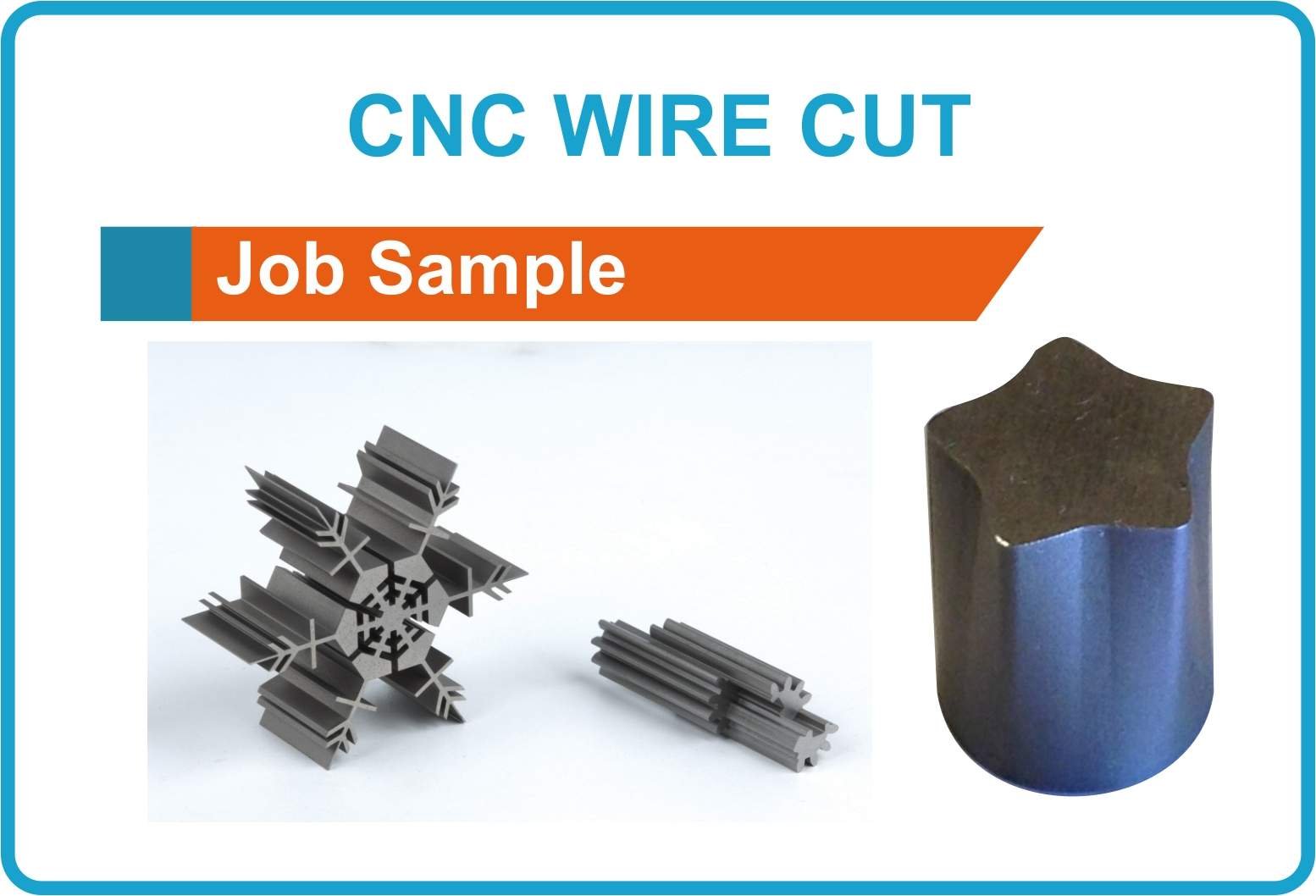

Job Sample
.jpg)
Standard Accessories
- Wire Right Angle Block
- Drum Handle
- Molybdenum wire
- Jr3 Gel
- Clamping Kit
- Allen Keys
- Spanner
- Scissor
Technical specifications
| Parameter/Specification | Unit | ECO-20 | ECO-25 | ECO-35 | ECO-45 | ECO-50 | ECO-63 | ECO-80 |
|---|---|---|---|---|---|---|---|---|
| Working table ( X x Y ) | mm | 270 x 420 | 430 x 630 | 540 x 780 | 580 x 880 | 650 x 1000 | 750 x 1150 | 980 x 1350 |
| Working travel ( X x Y ) | mm | 200 x 250 | 250 x 350 | 350 x 450 | 450 x 550 | 500 x 630 | 630 x 800 | 800 x 1000 |
| Max. thickness of work piece | mm | 300 | 300 | 500 | 500 | 700 | 700 | 800 |
| Max. taper | Deg./mm | ±6 Deg / 80 | ||||||
| Max. cutting speed | mm²/min | Std. 100 / (200 High Speed Controller) | ||||||
| Optimum roughness | um | 1.50 (0.80 Multiple Cutting) | ||||||
| Electrode wire diameter | mm | 0.12 To 0.25 (0.18 Std) | ||||||
| Power Consumption | kVA | 2 | ||||||
| Input power supply | V | 3 Phase, 415VAC, 50Hz | ||||||
| Max. work piece weight | kg. | 200 | 200 | 300 | 400 | 600 | 800 | 1000 |
| Working liquid | - | DM water | ||||||
| Min. input command | mm | 0.001 | ||||||
| Overall weight | kg. | 800 | 1200 | 1700 | 1900 | 2400 | 3000 | 4500 |
| Dimension of machine | mtr | 1.5x1.0x1.4 | 1.5x1.0x1.4 | 1.6x1.3x1.7 | 1.7x1.5x1.7 | 2.0x1.7x1.7 | 2.2x1.9x1.9 | 2.5x2.1x2.0 |
